Advantage Features
1.Motor: Adopts Japanese technology, ensuring more stable quality.
2.Battery: 15.6Ah capacity, ternary lithium battery;
the battery cells use domestic and international leading brands (DMEGC cells, the same as those used in Samsung mobile phones).
3. elegant and stable structure:offering a better user experience.

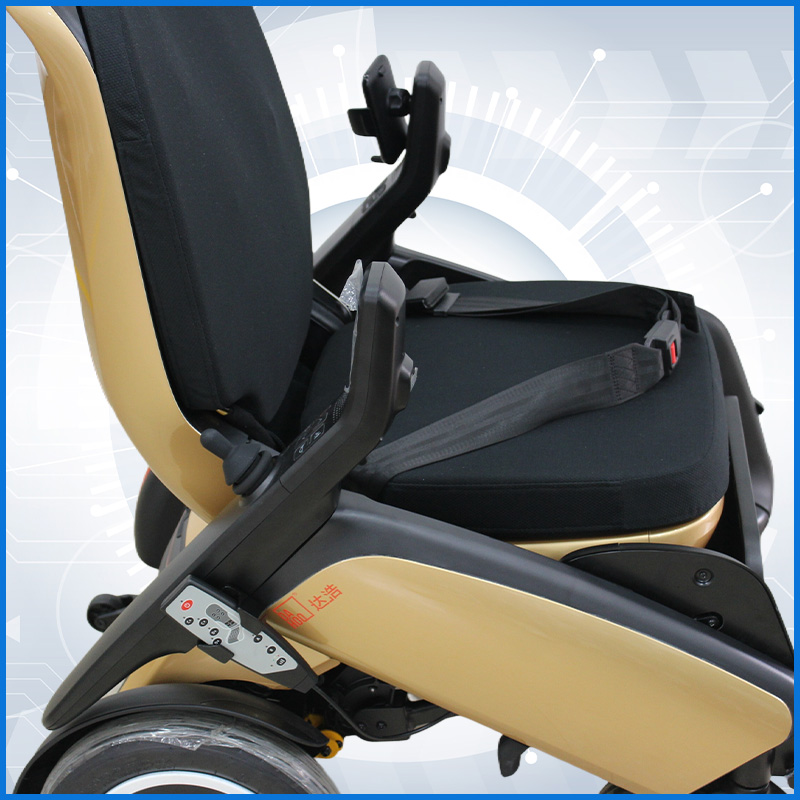

4.Seat and backrest cushion: made of high-resilience memory foam.
5.Outer shell: Made of ABS material,same quality as car-level
6. 20KM range-Extended operating endurance
Product Details

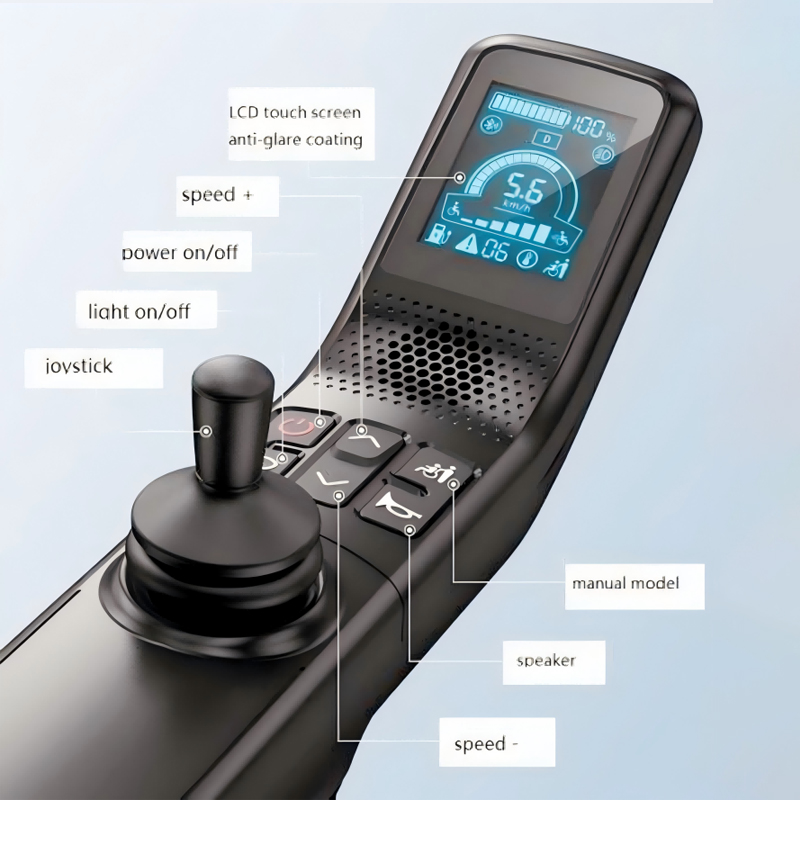

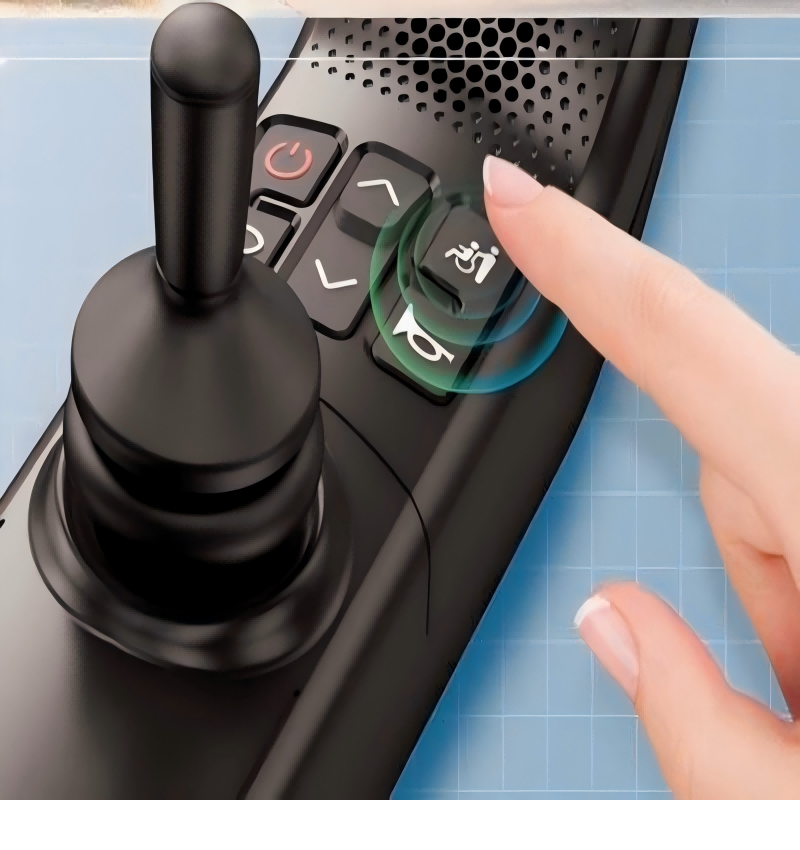

Inteligent LCD Controller
One-Touch Manual Mode Switching

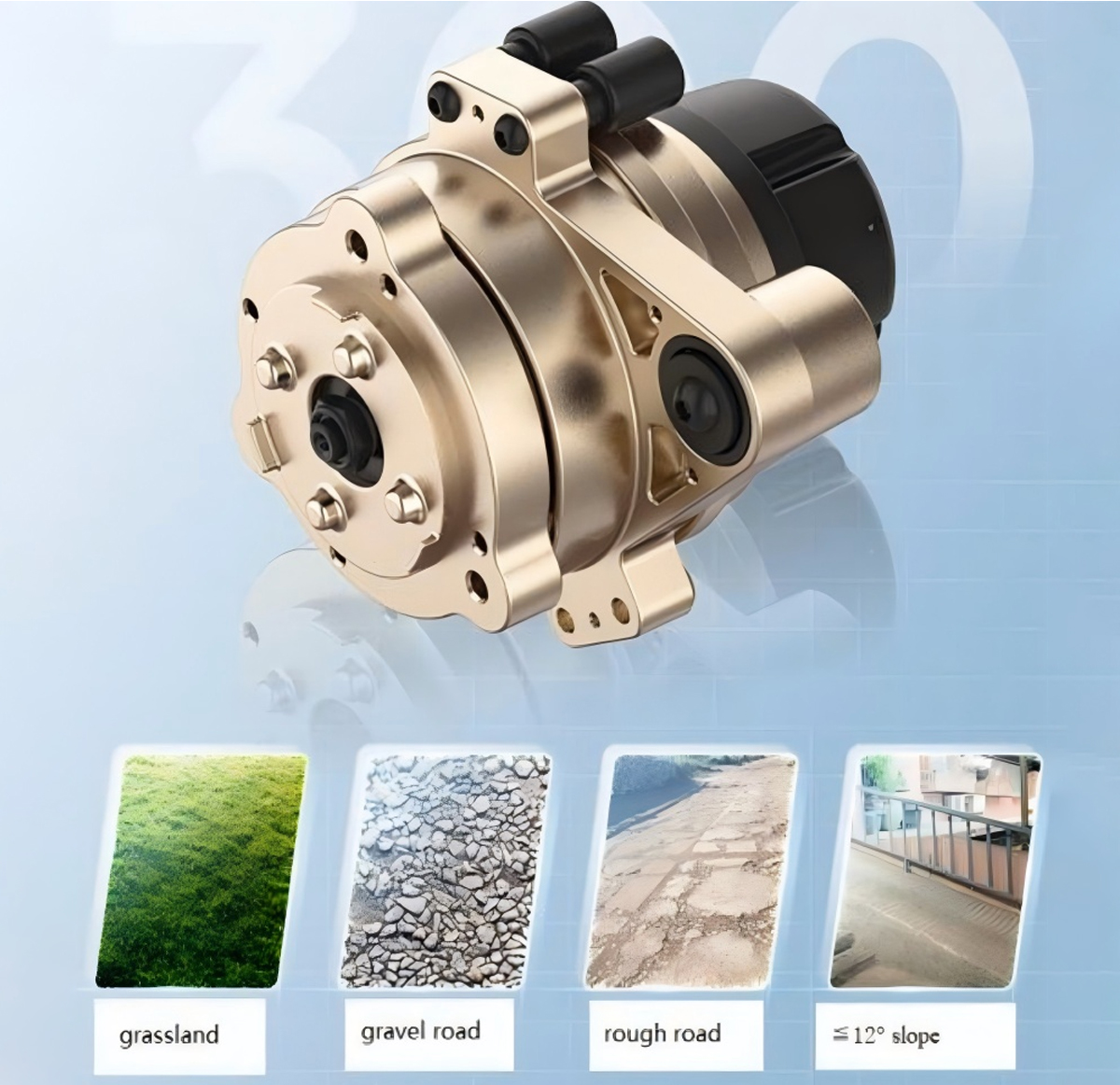

High-power Motor-Strong yet lightweight with ultra-low noise operation
Adapts to various road conditions

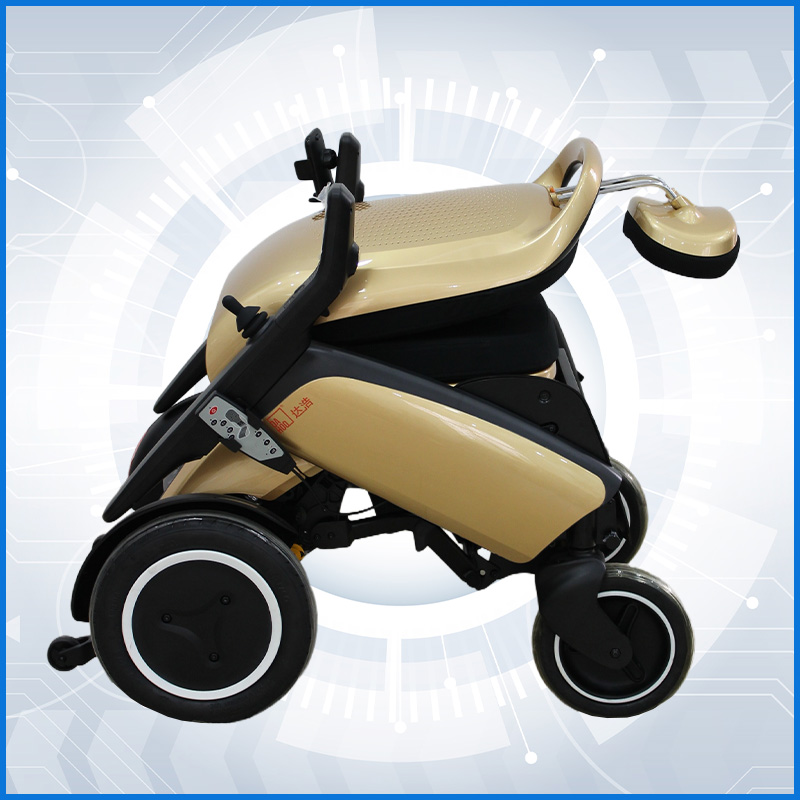

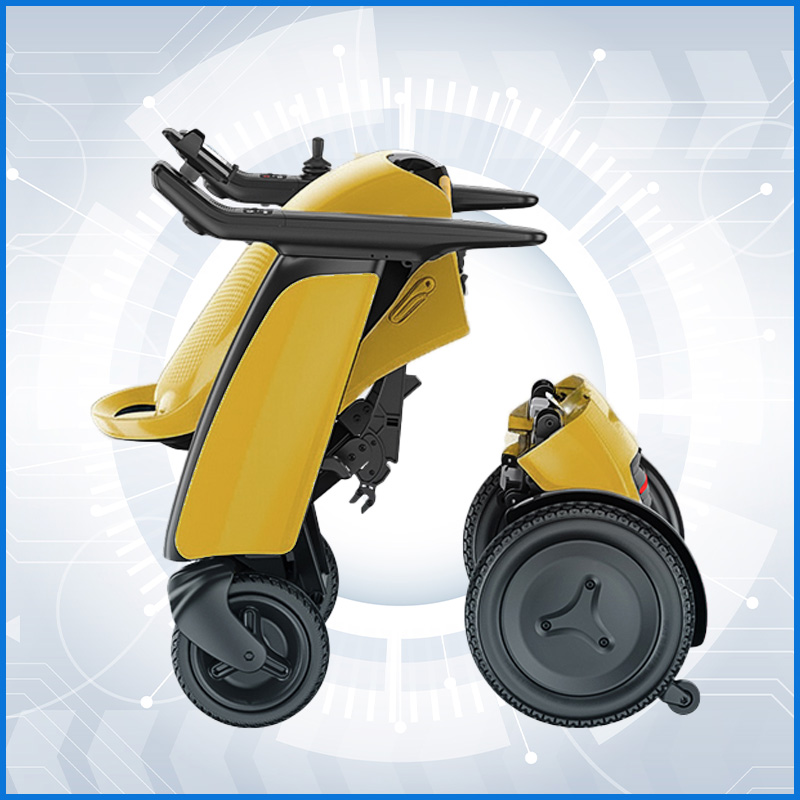

Tool-free removal in 5 seconds

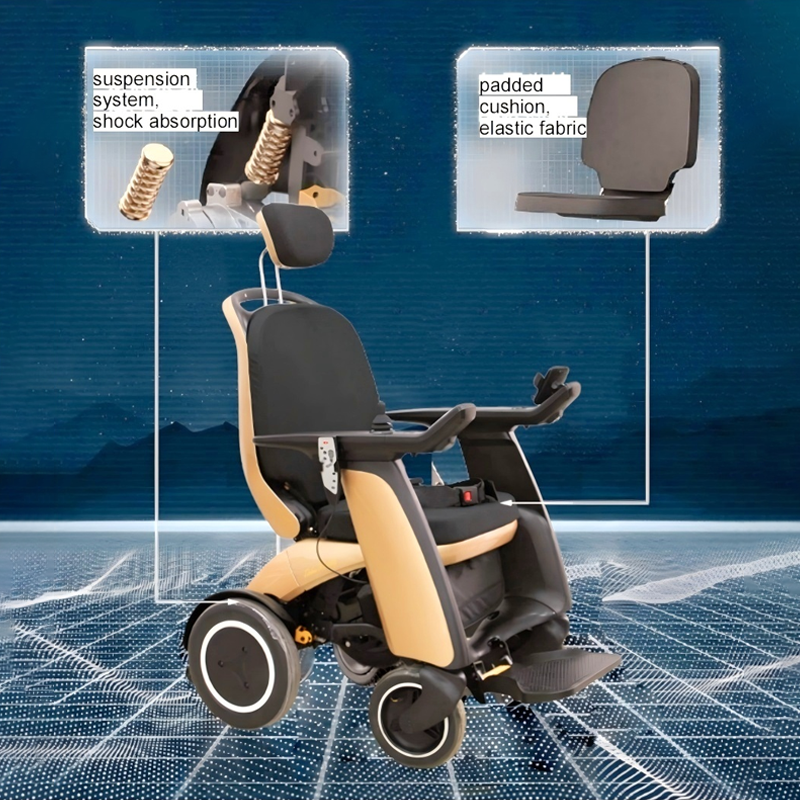

layers of shock absorption, more comfortable
Smooth 360 -degree rotation
Adjustable backrest angle from 90 degree to 135 degree

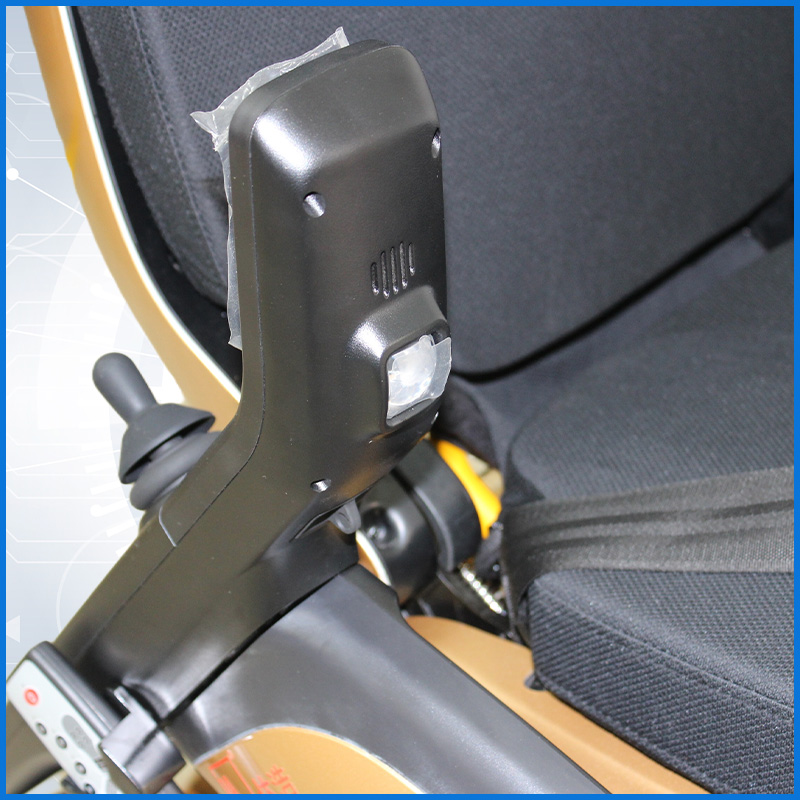

With nightlight,3 layers of light protection,strong penetrating power in rainy and foggy days

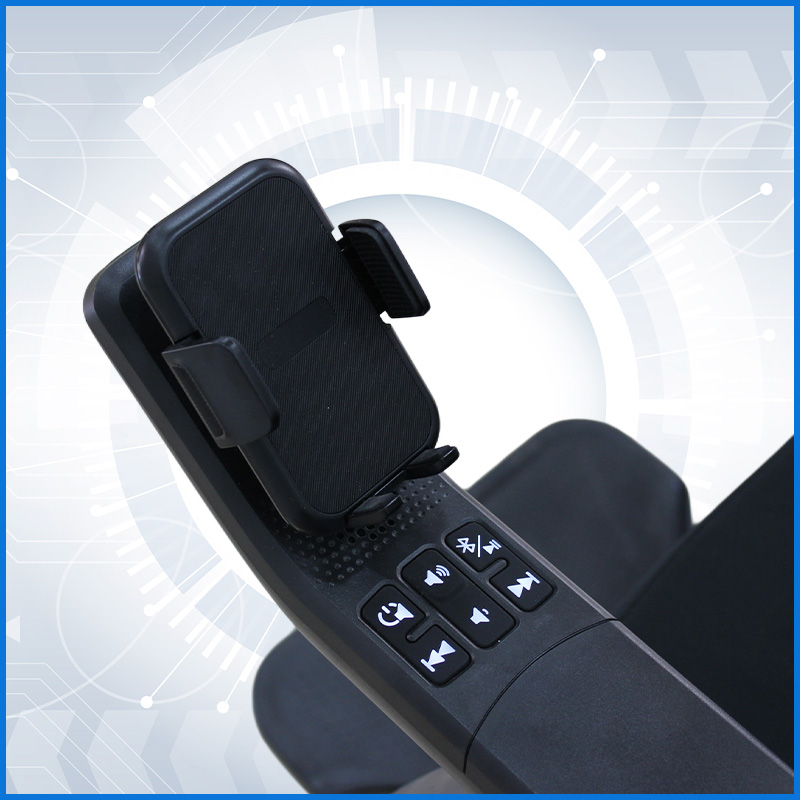

Mobile Phone Stand,waterproof top speaker, enjoy music

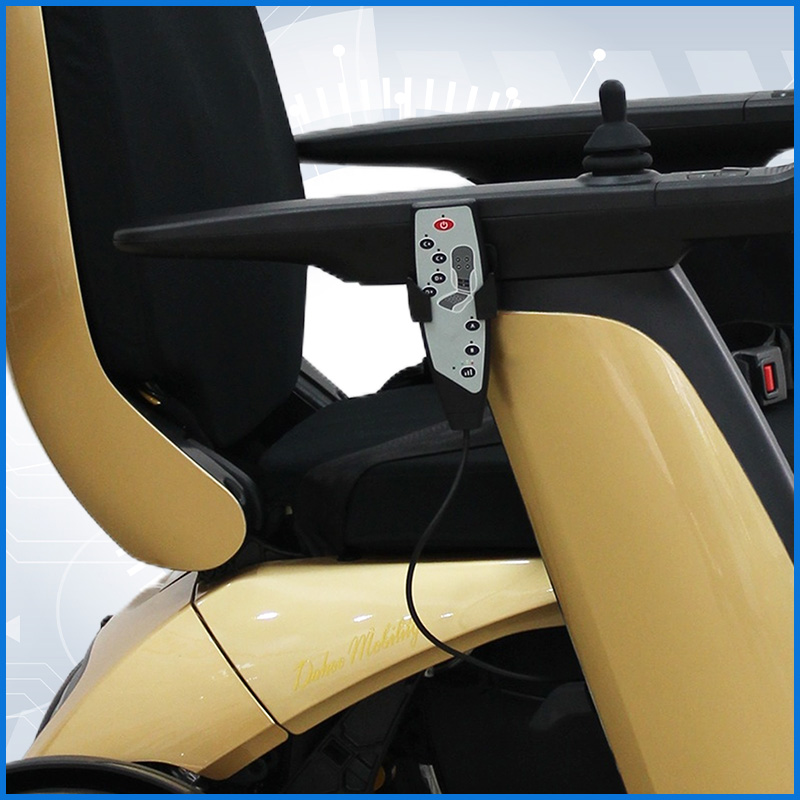

With Massage, Relax your body

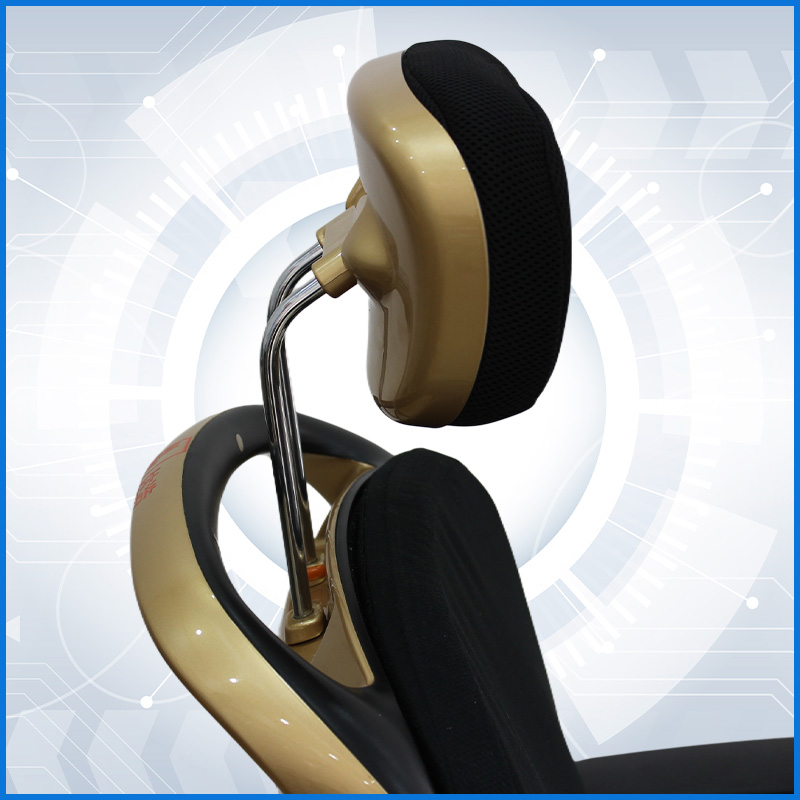

Headrest height & angle adjusted, meeting the needs of users of different heights.
Flip-up armests with effortless side adjustment
Parameter Table
Product name | Luxury electric wheelchair | Internal power supply | DC24V | Distance between footrest and seat | 48cm |
Product Type | Outdoor type | Noise | <65dB | Angle between footrest and seat surface | 13° |
Load Weight | ≤100kg | Motor power | 150W*2pcs | Seat angle to horizontal surface | 4° |
Endurance | ≤20 km | Dimensions | 104.5×62×102cm | Handrail structure Front position | 55cm |
Obstacle | ≥40mm | Folded length | 83cm | N.W | 42kg |
Crossing width | 100mm | Folded Width | 62cm | Heaviest component mass | 24kg |
Climbing ability | ≥6° | Folding height | 85cm | Battery | Lithium DC24V15.6Ah |
On-slope | 9° | Backrest height | 51cm | Front wheel | 9 inch |
Minimum turning radius | ≤1.2m | Backrest angle | 10 ° | Rear wheel | 12.5 inch |
Maximum speed | ≤6km/h | Effective seat depth | 45cm | Static stability | ≥9° |
Maximum safety Slope braking | ≤3.6m（6°) | Effective seat width | 48cm | Dynamic stability | ≥6° |
Horizontal braking performance | ≤1.5m | Front seat surface height | 53.5cm | ||
The above parameters may vary depending on the weight of the passengers, the usage environment and the battery usage. | |||||
Classification by electric shock protection type: does not work when charging, and is an internal power supply device when working normally; We reserve the right to change the technology and appearance of this product. If there is any change, we will not notify you separately. Thank you for your understanding! | |||||

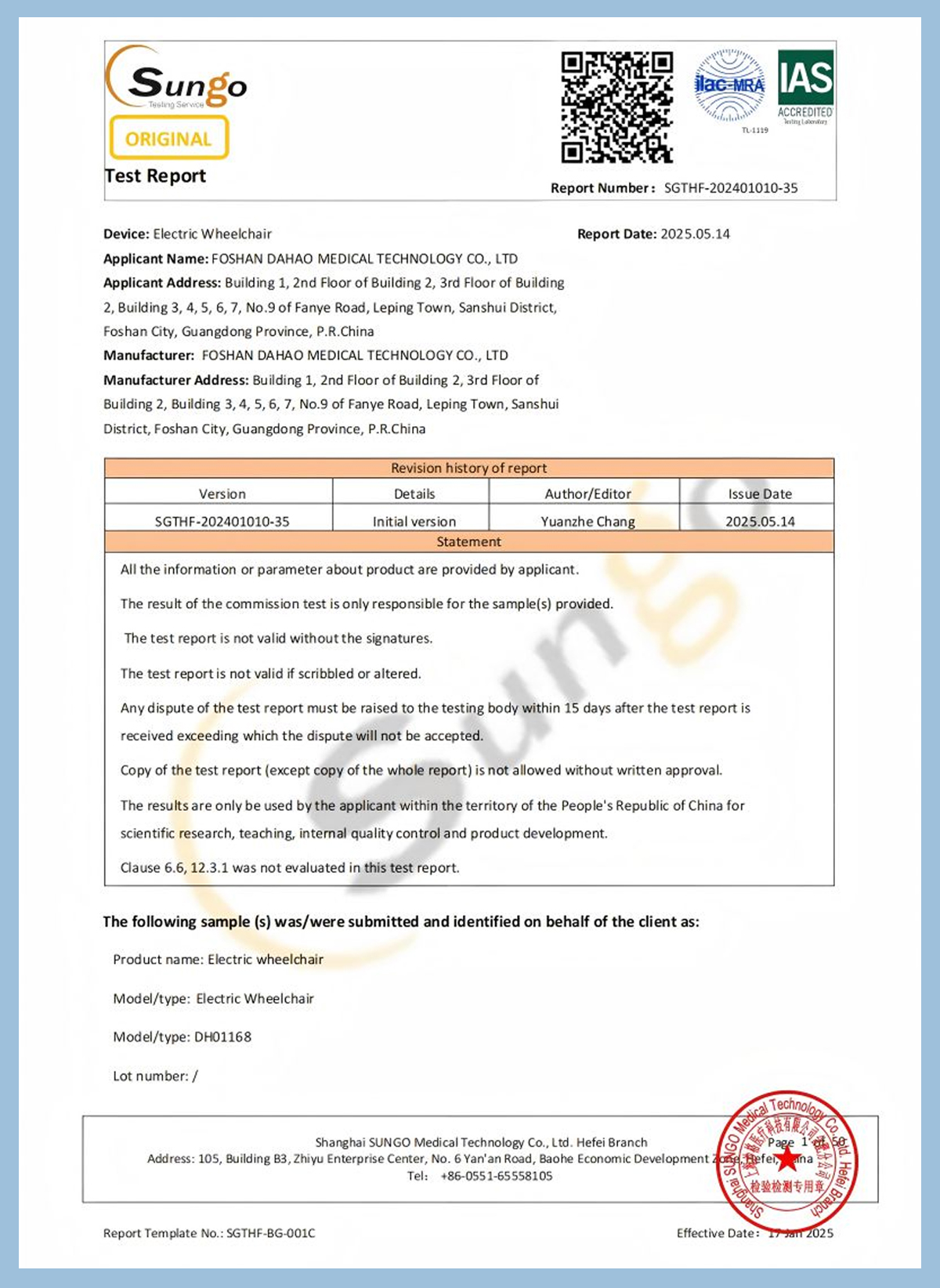

Test Report:ISO 7176
