Advantage features
1. Ultra light weight :13.5kg with convenience and strength,
2. 136kg Load weight,ensuring it meets the needs of a wide range of users,
3.Unbreakable and 30% stronger than Aluminium material
4. Seat & back cushion anti-wrinkle with support 8000N
5. magnesium alloy front wheels and rear wheel, not only enhance durability but also contribute to a smoother ride,
6.include a remote controller, you can operate the wheelchair with ease, offering independence and freedom.

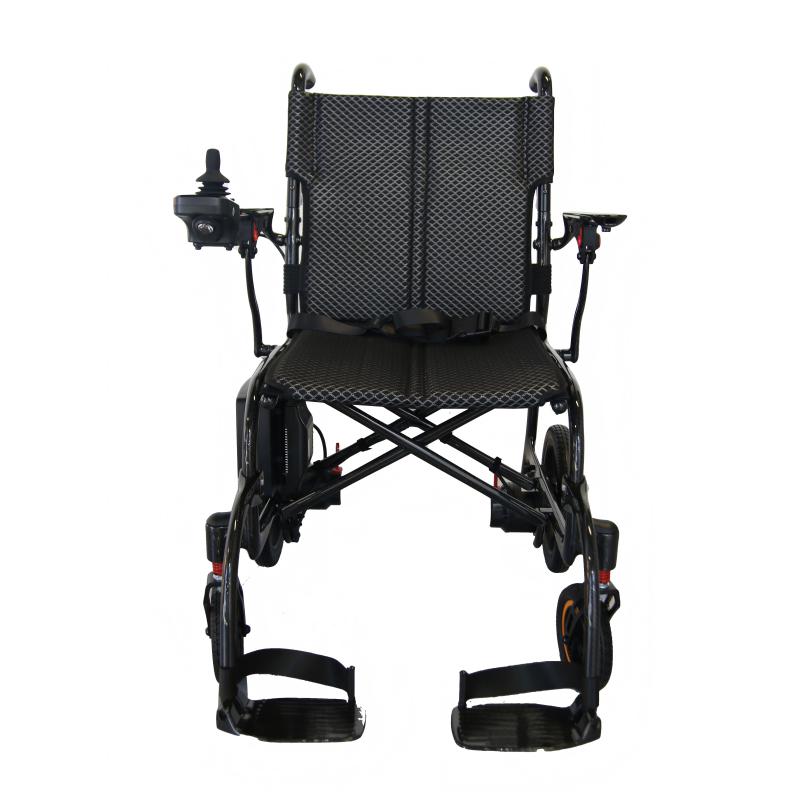

Product details
The lightest in the industry at just 12kg without battery

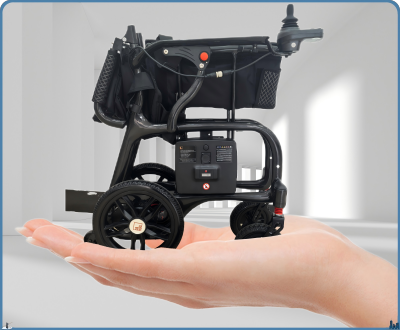

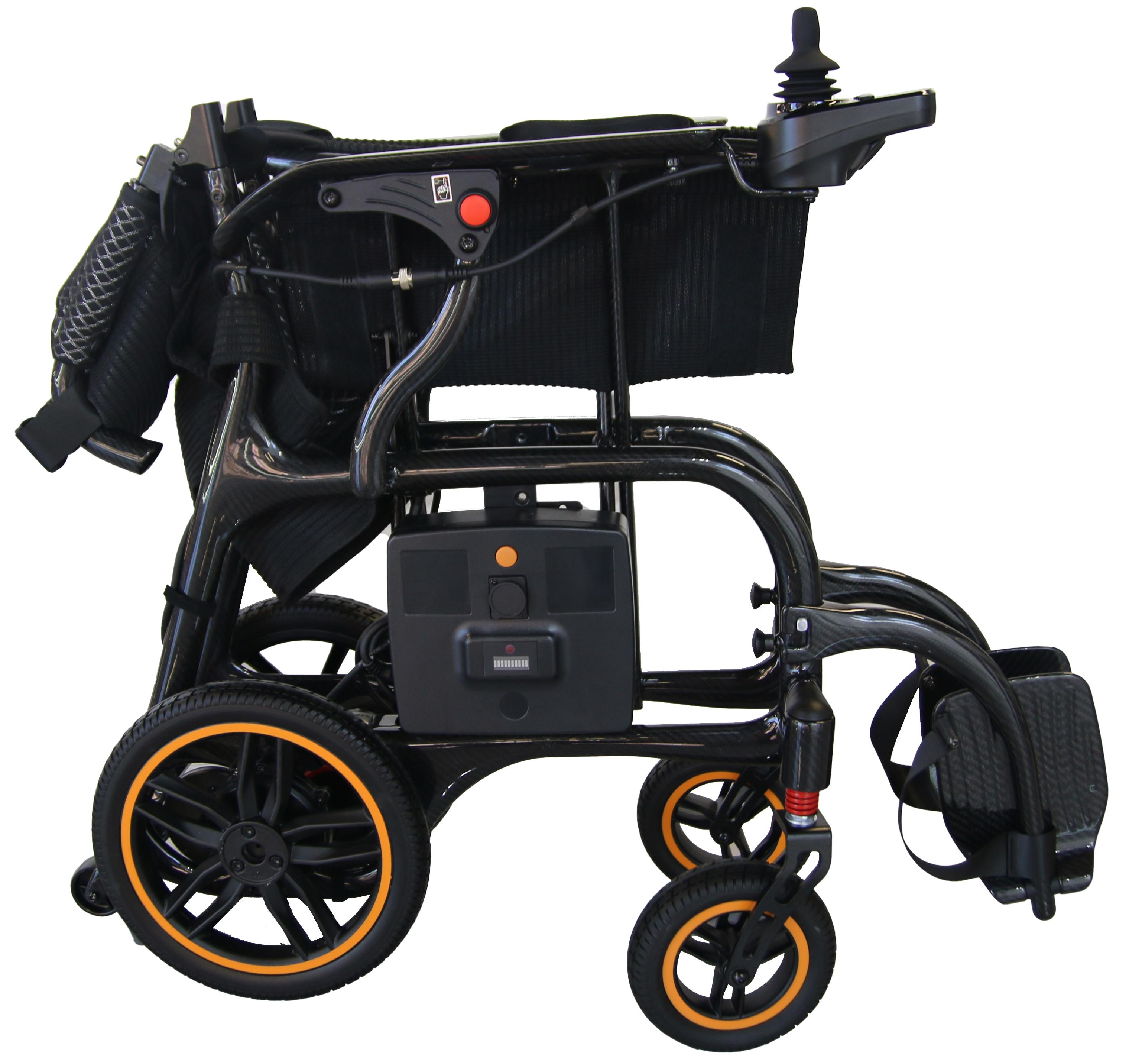

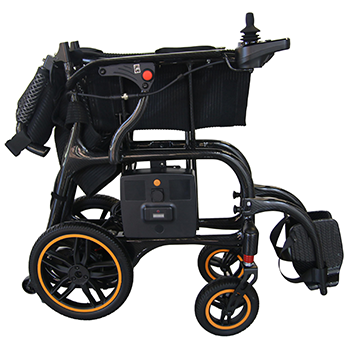

Folds ultra-compact - effortlessly stows in any car trunk, even for seniors

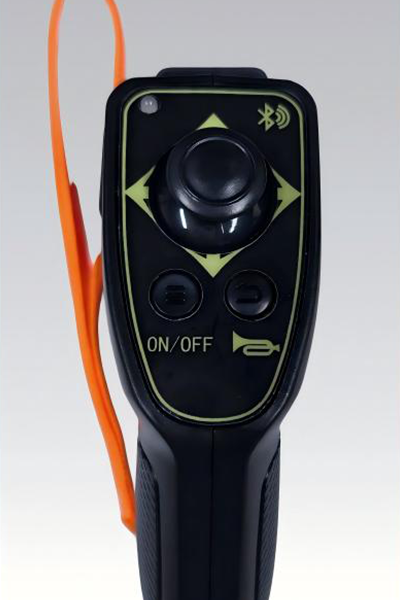

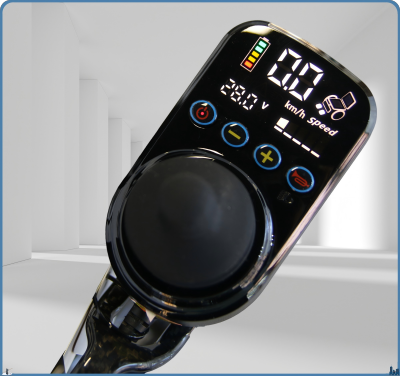

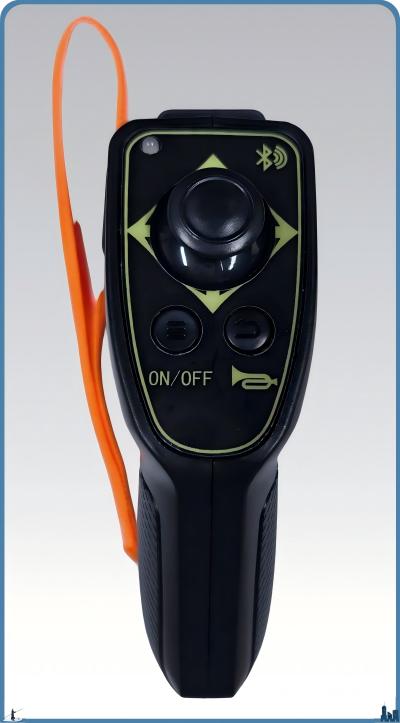

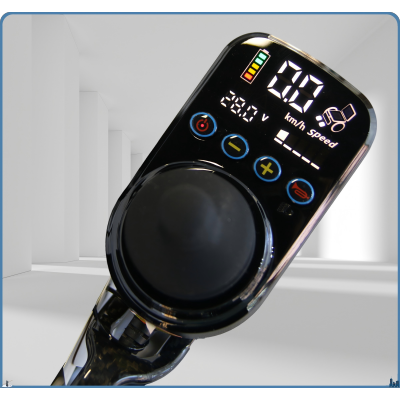

One-touch ergonomic wheelchair remote

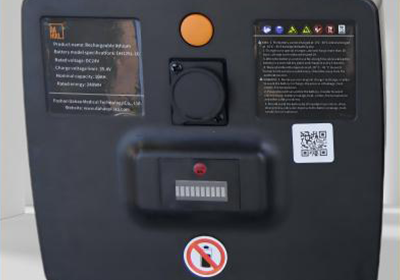

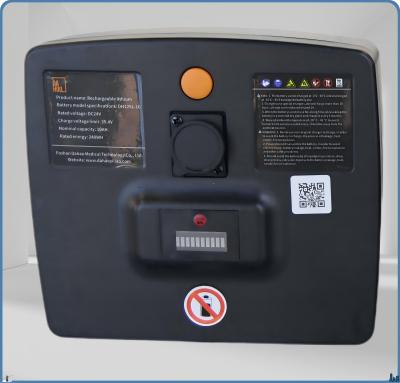

Removable battery for effortless charge

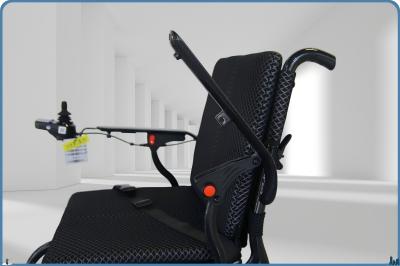

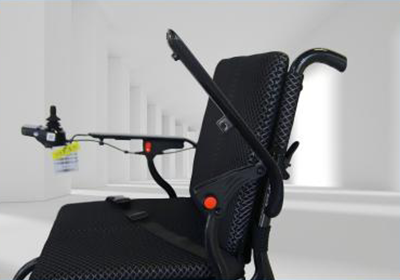

One-hand flip-up armrests for transfer

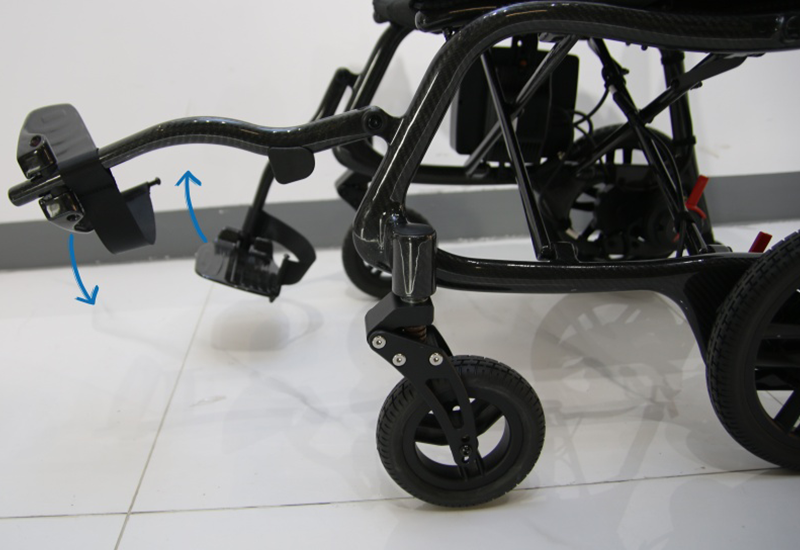

Swing-away footrest for easy transfers

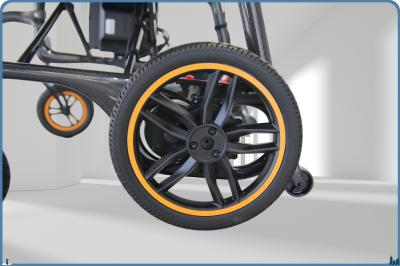

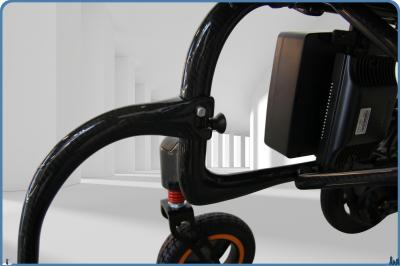

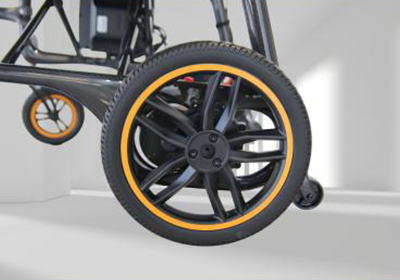

Megnesium alloy rear wheels with aerospace-grade quality
Upgradeable Accessory Kits
Wireless control

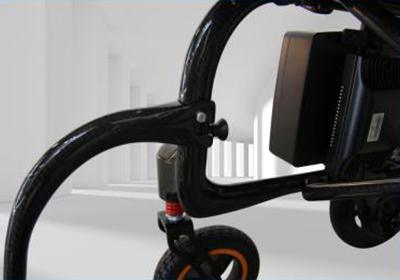

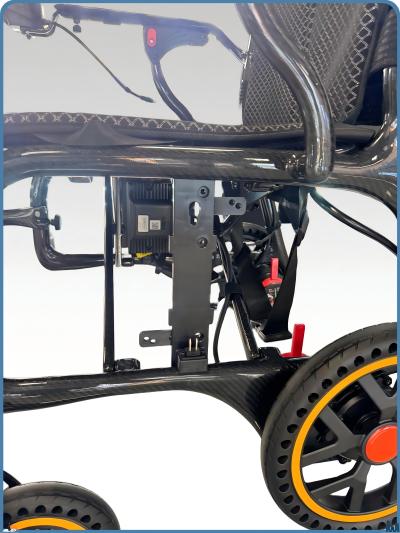

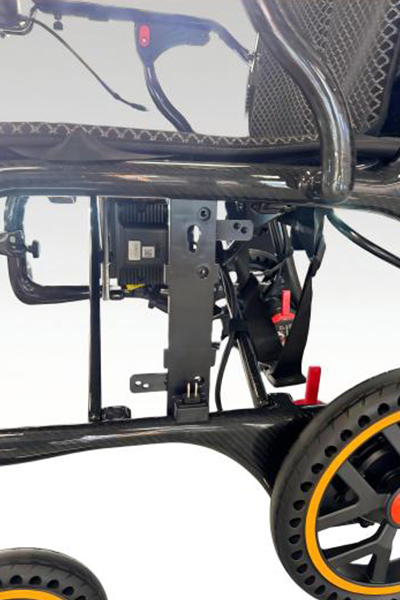

extended back up battery with quick-release mounting system
Specification
Item | Parameter | |
Total length | 89cm | |
Overall width | 60 cm | |
Total height | 90 cm | |
Folded length | 63 cm | |
Folded Width | 25 cm | |
Folding height | 71 cm | |
Seat Width(between two armrest distance) | 41 cm | |
Seat Depth | 40 cm | |
Seat height from ground | 49 cm | |
Backrest height | 40 cm | |
Armrest height | 22 cm | |
Front wheel diameter | 6.5 inch magnesium alloy PU wheel | |
Rear wheel diameter | 12 inch magnesium alloy PU wheel | |
Frame material | Carbon Fiber | |
Motor | Brushless motor with electromagnetic brake ZW9012L3A-SF | |
Motor power | 150 W/ 2 pcs | |
Battery | Lithium battery 6AH / 10AH | |
Range | 10-15 km | |
Max. speed | 4.5 km/h | |
Max Gradeability | 3 ° | |
Max Obstacle-crossing ability | 25mm | |
Packing size | 64*26*71 cm /76 with lower cover | |
Net Weight | 10 AH : 13.5 kg / without battery: 12 kg | |
Weight capacity | 136 kg |

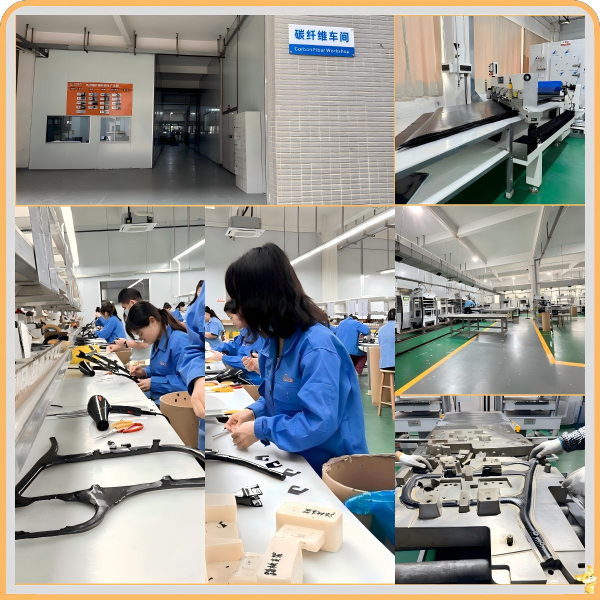

Carbon Fiber power wheelchair manufacturing Facility

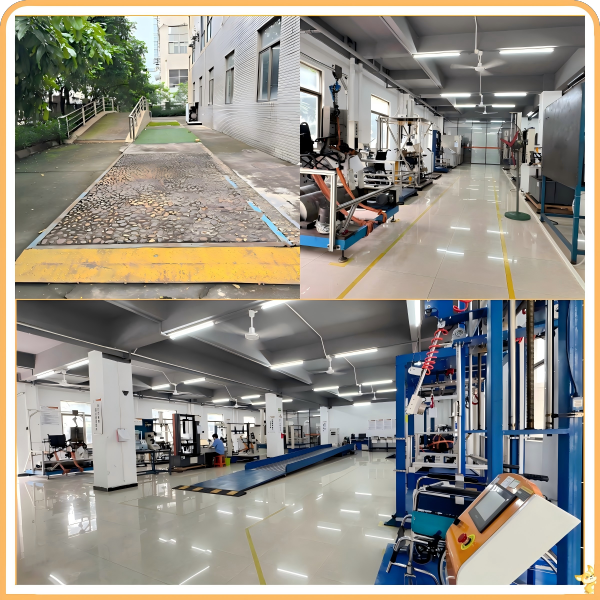

Quality Testing Laboratory

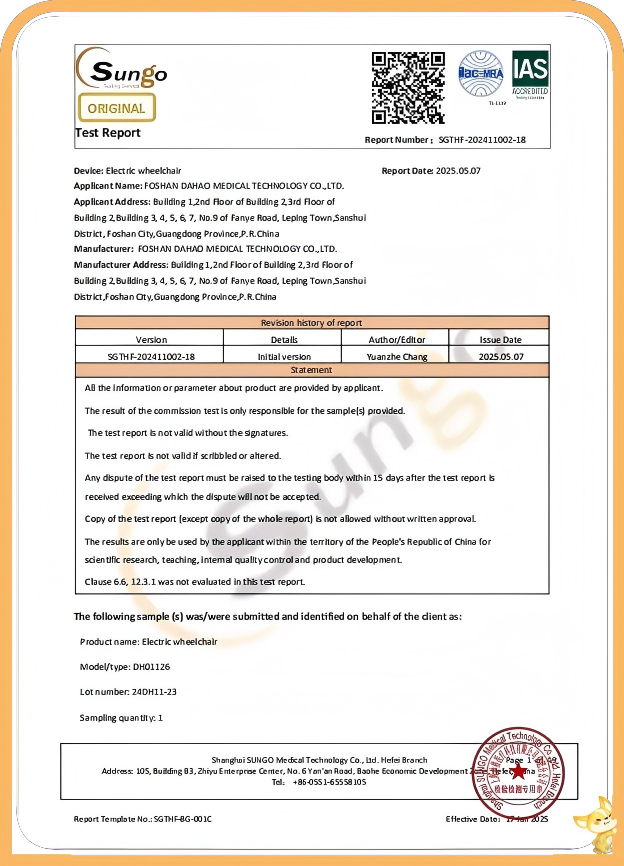

Carbon Fiber power wheelchair ISO7176 Test Report

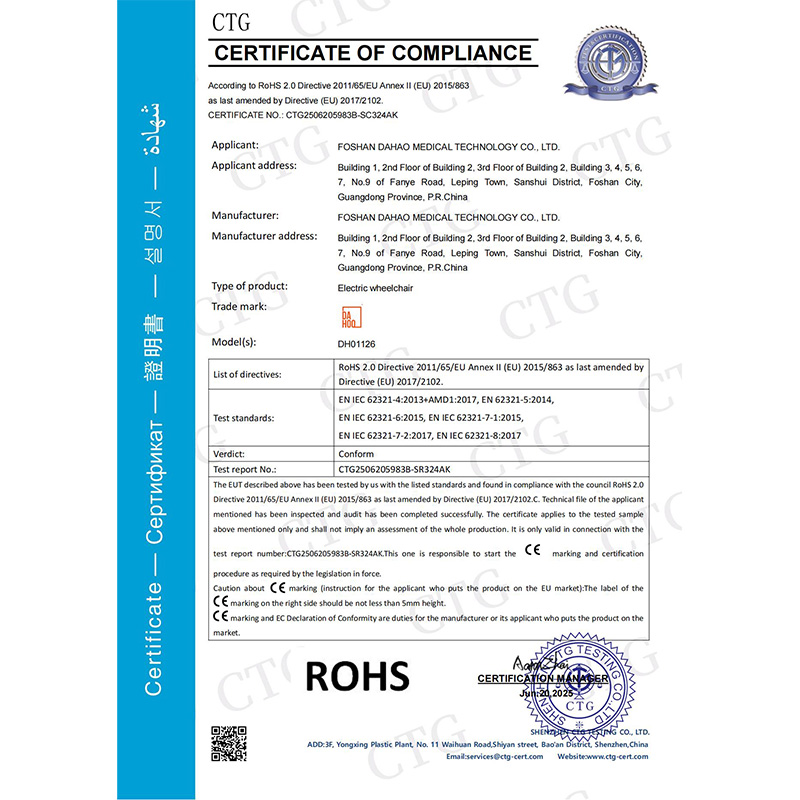

ROHS CERTIFICATE
ROHS CERTIFICATE

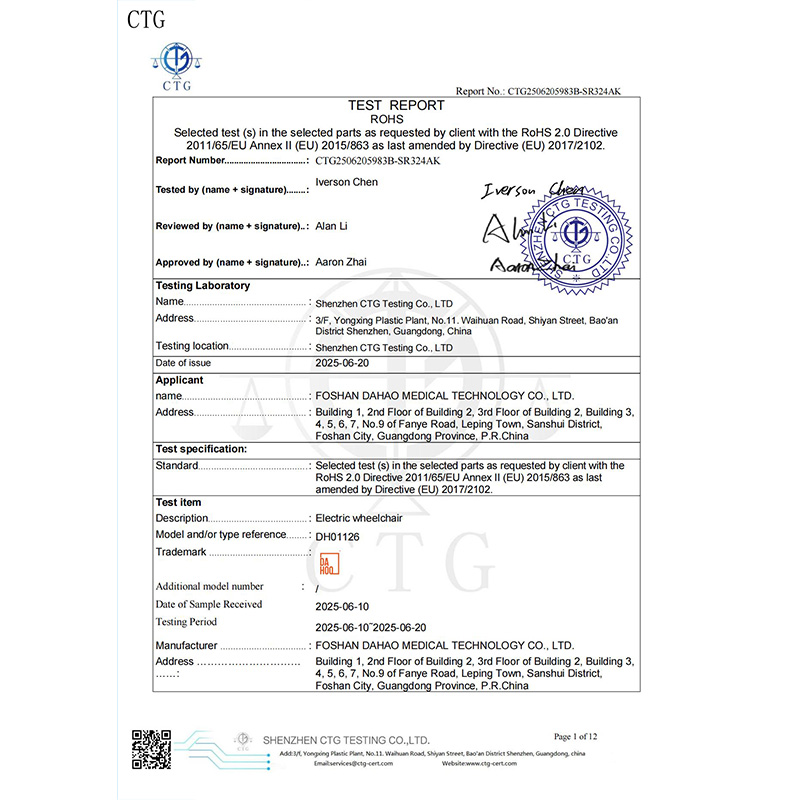

ROHS TEST REPORT
