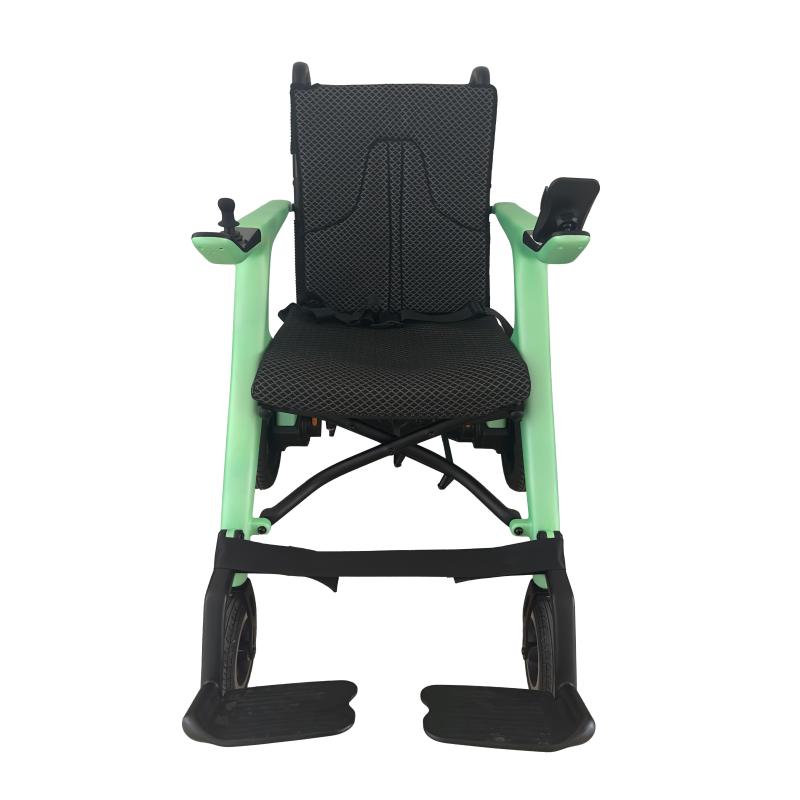

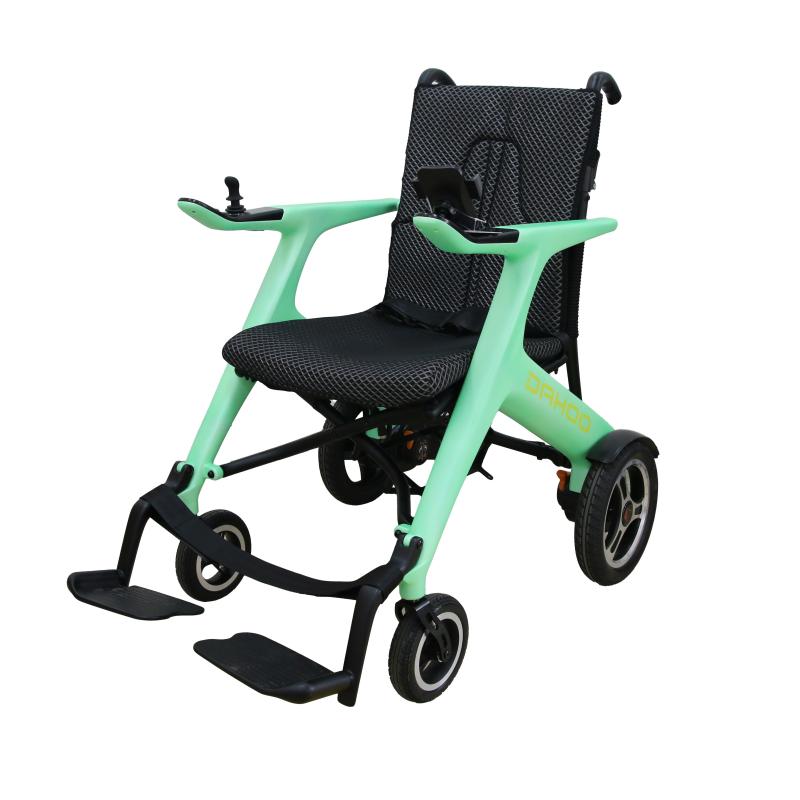

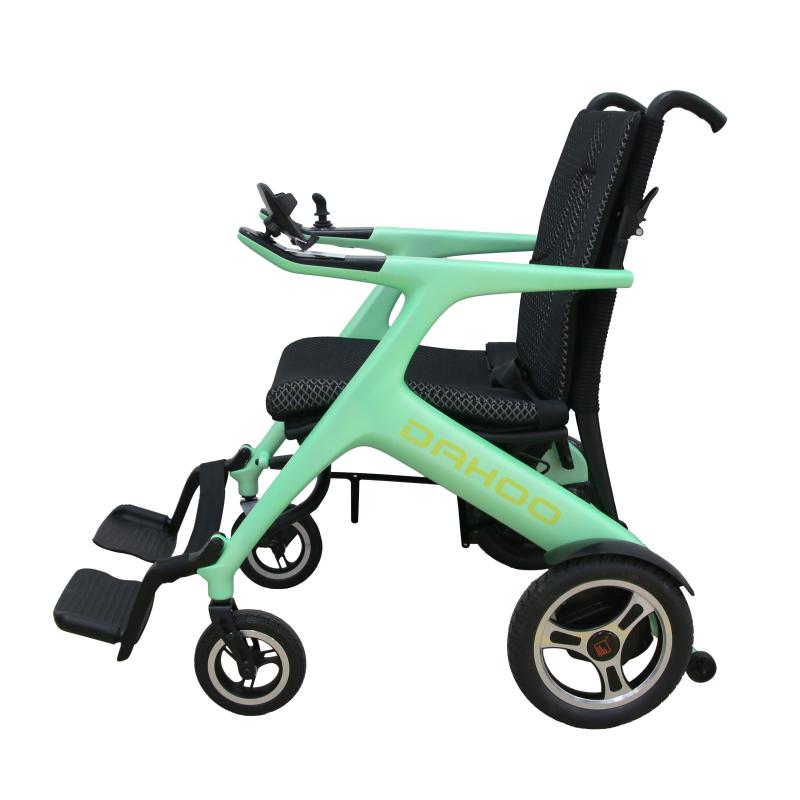

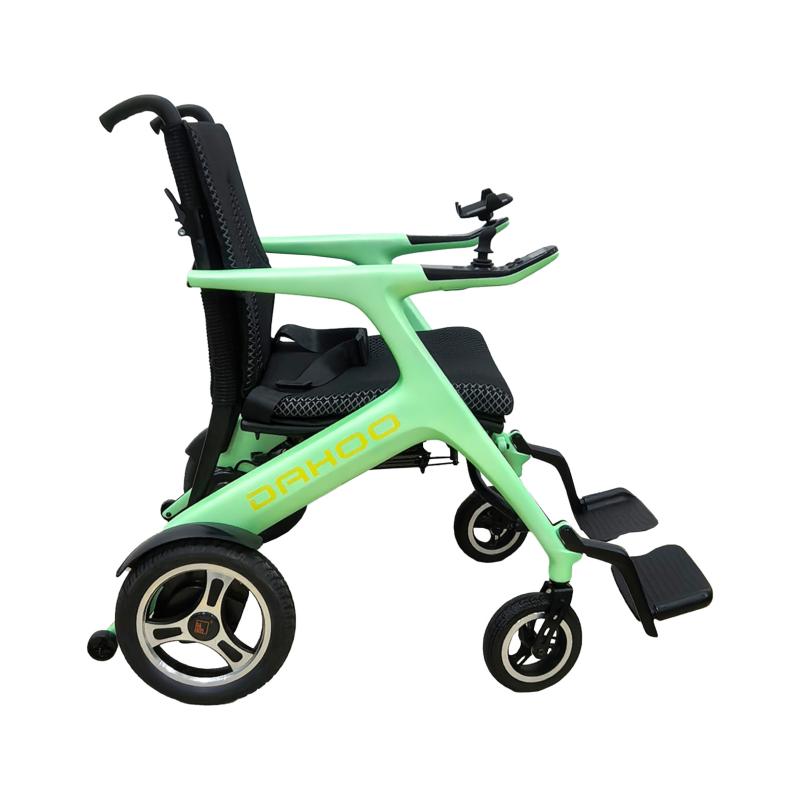

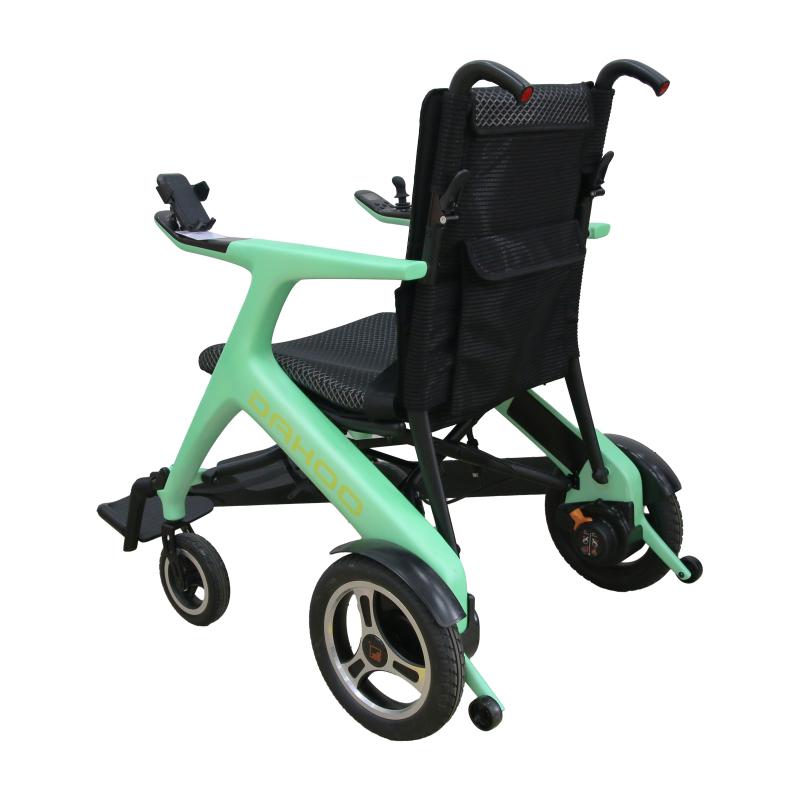

The main body is made of high-strength carbon fiber, formed in a single piece, offering lightweight portability, high cost-performance, and a sleek, structurally innovative design.
Carbon tube wall thickness: 2mm, delivering excellent rigidity, high strength, and exceptional lightness.
Surface finish: Retains the natural carbon fiber texture in its original color, with a glossy protective paint coating for superior corrosion and oxidation resistance.

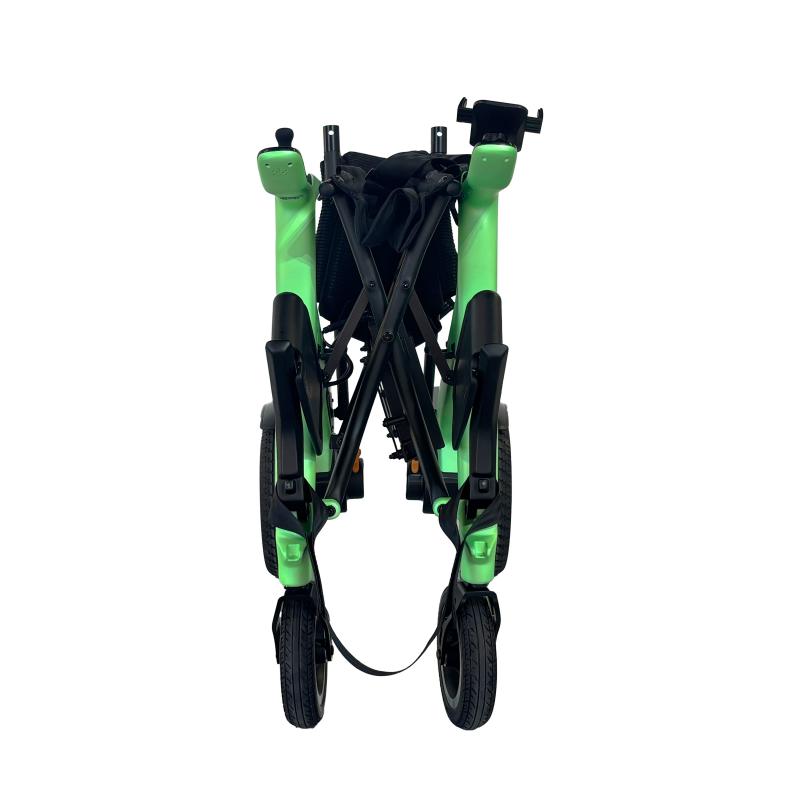

Foldable frame for easy transport and space-saving storage.
I-beam cross-structure design enhances stability.
Ergonomically designed carbon fiber seat tubing ensures even cushion support, eliminating fatigue during extended sitting.
Material: High-strength nylon fabric + mesh (stitched construction) – soft, breathable, slip-resistant, and neatly finished.
Reinforced with an internal canvas layer for added durability.
High tensile strength (up to 5000N) for long-lasting performance.

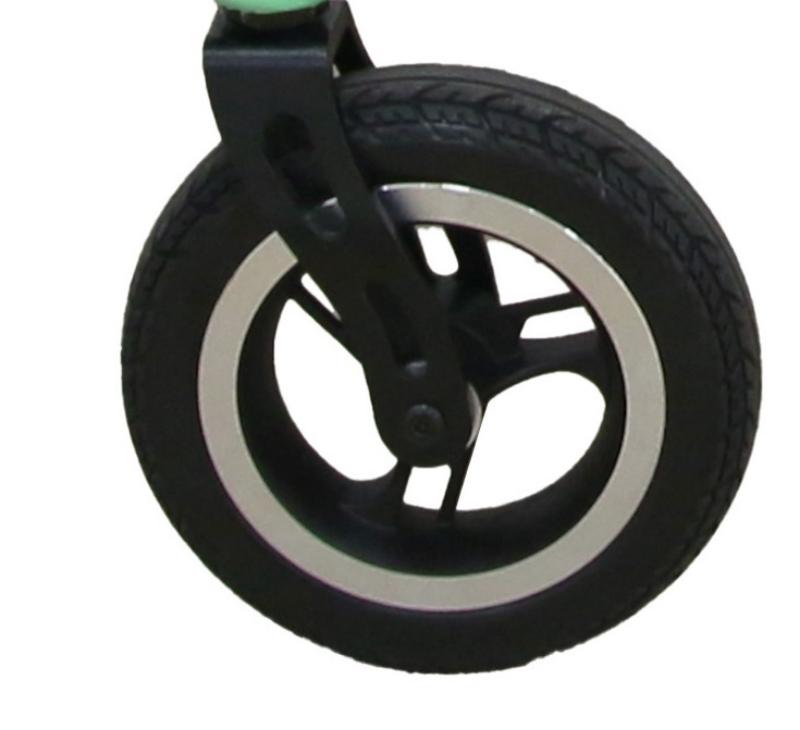

Front wheels: 7.5-inch aluminum alloy (non-pneumatic, wear-resistant) + PU tires + shock-absorbing springs – smooth ride with front-wheel suspension.
Aluminum front fork for enhanced stability.

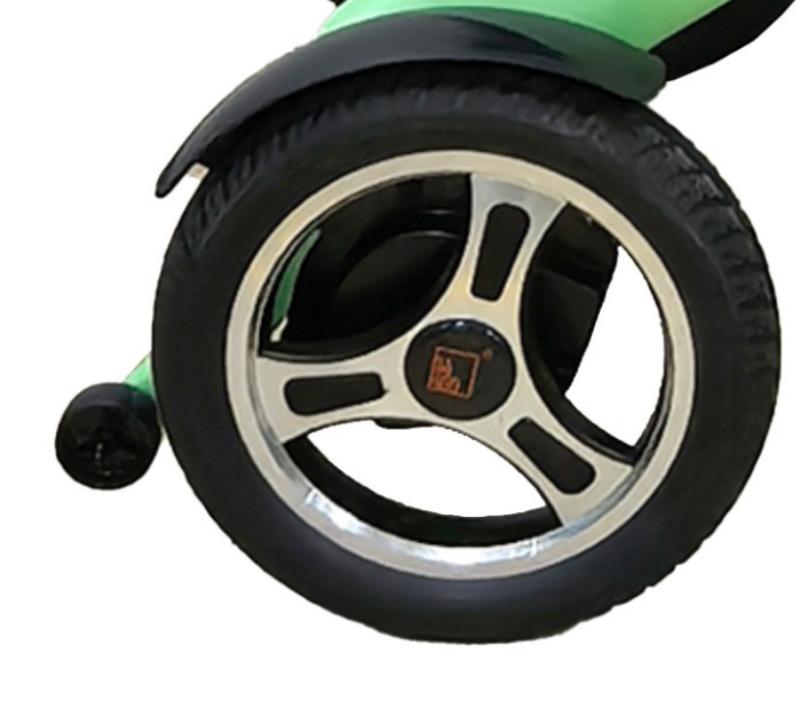

Rear wheels: 12-inch aluminum alloy + PU tires – more elastic and comfortable.
Tire & chassis design ensures excellent stability, durability, and safety.
250W hub-type brushless motor with electromagnetic brake – lightweight, energy-efficient, and powerful.
Delivers sufficient torque for varied terrains, ensuring smooth operation on all surfaces.
Electric/manual one-touch switching for flexible use.
Real-time speed display for better control.
Low-battery intelligent braking for enhanced safety.
Simple yet innovative structure, lightweight build, and robust engineering make it convenient for various environments and user needs.
Name | Parameters | Name | Parameters |  | |
Overall length | 1090±10MM | Application type | þindoor type outdoor type¨ | ||
total width | 700±10MM | Maximum speed | ≤4.5KM/H | ||
total height | 990±10MM | Braking performance of horizontal road surface | ≤1.0M | ||
Fold length | 900±10MM | Maximum safety gradient braking | ≤1.6M（3°） | ||
Fold width | 390±10MM | hill standing performance | 6° | ||
Fold height | 830±10MM | static stability | ≥6° | ||
Backrest height | 520 / Seat cushion 480±10MM | dynamic stability | ≥3° | ||
seat plane angle | 4 ° (Ergonomics) | obstacle crossing height | ≥25MM | ||
effective seat width | 450±10MM | Over-groove width | 100MM | ||
effective seat depth | 440±10MM | climbing ability | ≥3° | front wheel diameter | 7.5 Inches |
front seat surface height | 480 / Seat cushion 530±10MM | Turn diameter | ≤1800MM | Back wheel diameter | 12 Inches |
Backrest angle | 12° | theoretical driving distance | 15km | Frame material/pipe diameter*thickness | 32 * 18 flat tube/φ22*2.0 aluminum tube |
foot support to seat distance | 500±10MM | Range | 15km | Motors | 150W brushless motor (with electromagnetic brake) |
Angle of the footrest to the seat surface | 106° | Packing size | 95CM*43CM*93CM
| Motor power | 150W*2 |
Handrail structure front position | 550±10MM | Net weight | 18.8KG | battery | 24V12AH |
bearing weight | 136KG | Quality of important components | 16.4KG | Gross weight | 23KG |
