Hospital Air Mattress DY075001/DY075002
Introduction:
Dayang Medical Air Mattress DY075001/DY075002 are specially designed for the treatment and prevention of pressure sore in short-term and domiciliary therapies, offering the total relief to users.
Products Parameters:

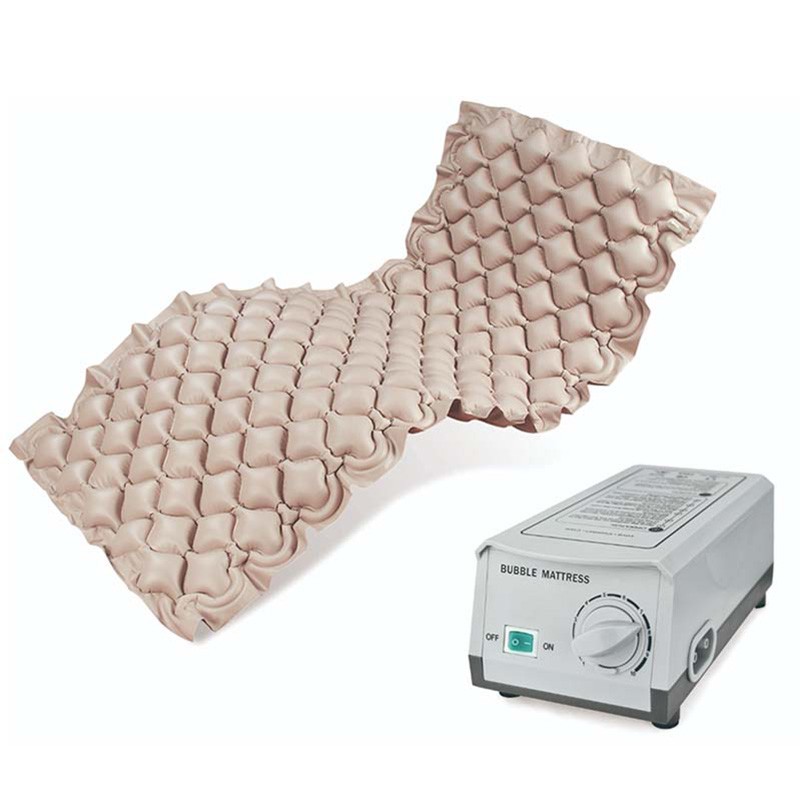

DY075001
| Bubble Mattress | Pump | ||
| dimensions without flaps(L*W*H) | 200*90*7cm(standard size) | electrical | ac110v/220v 50hz/60hz |
| extension flaps | head & foot slide | pressure range | 40-100 mmHg |
| mattress material | odourless medical-grade PVC (Rohs/flame resistance/EN-71) | air output | 6-7 L/min |
| material thickness | 0.32mm | dimensions(L*W*H) | 25*12*10cm |
| cold-resistant | -30°C | plastic casing | ABS |
| number of cells | 130 | test duration | 24 hours |
| weight support | 135kg | certificate | German TUV-CE IEC/EN60601-1&60601-1-2 |
| HF welding | one-time forming (Japan Toshiba power tube) | synchronous motor | Taiwan Ann Yih Brand(alternating control system) |
| certificate | Rohs/CA-117/EN-71 | alternating | 1-in-2 |
| warranty | 12 months | warranty | 12 months |
DY075002
| Mattress | Pump | ||
| dimensions without flaps(L*W*H) | 200*86*9.5cm | electrical | ac110v/220v 50hz/60hz |
| cell height | 9.5cm/4" | pressure range | 40-110 mmHg |
| cell and base material | nylon+PVC | air output | 6.5-7.5 L/min |
| nylon color | jewerlry blue | dimensions(L*W*H) | 25*12*10cm |
| number of cells | 20+1 free spare cell | test duration | 24 hours |
| test duration | 24 hours (inflation) | certificate | CE IEC/EN60601-1&60601-1-2 |
| pressure ulcer stage | I ,II | alternating | 1-in-2 |
| Mattress System | Overlay | warranty | 12 months |
| weight support | 140kg | ||
| warranty | 12 months |
