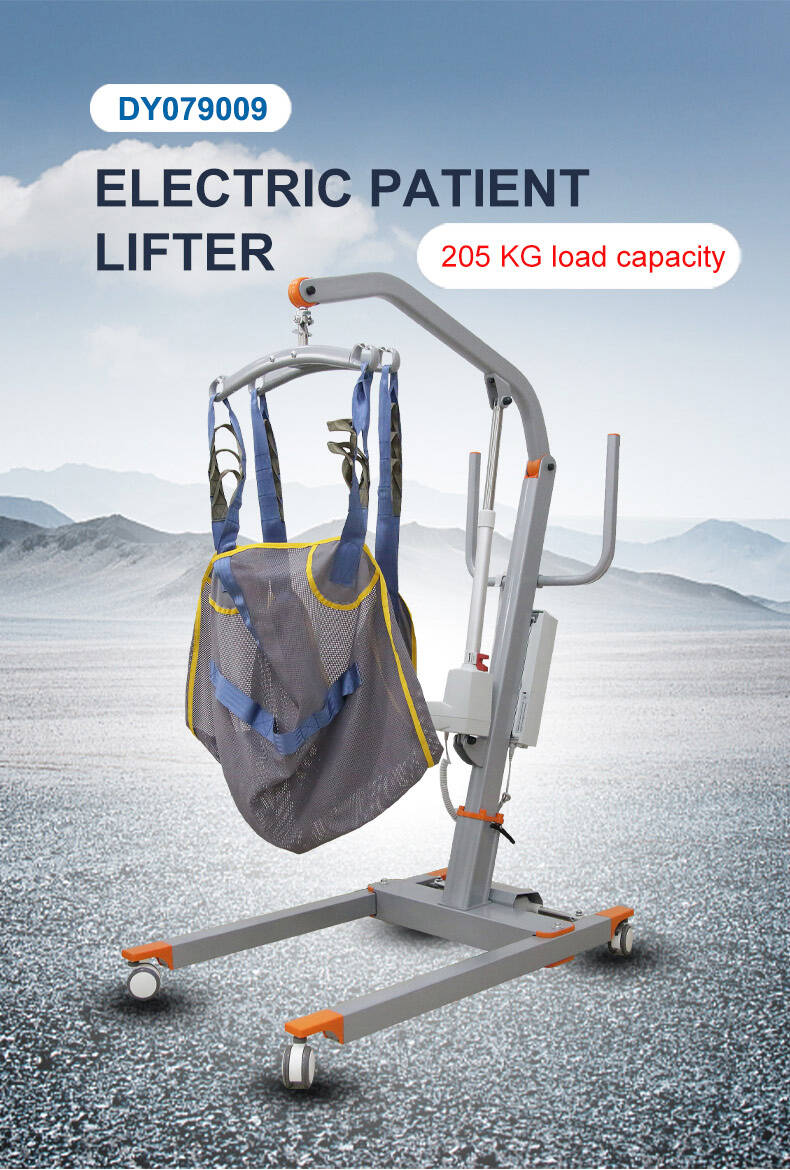

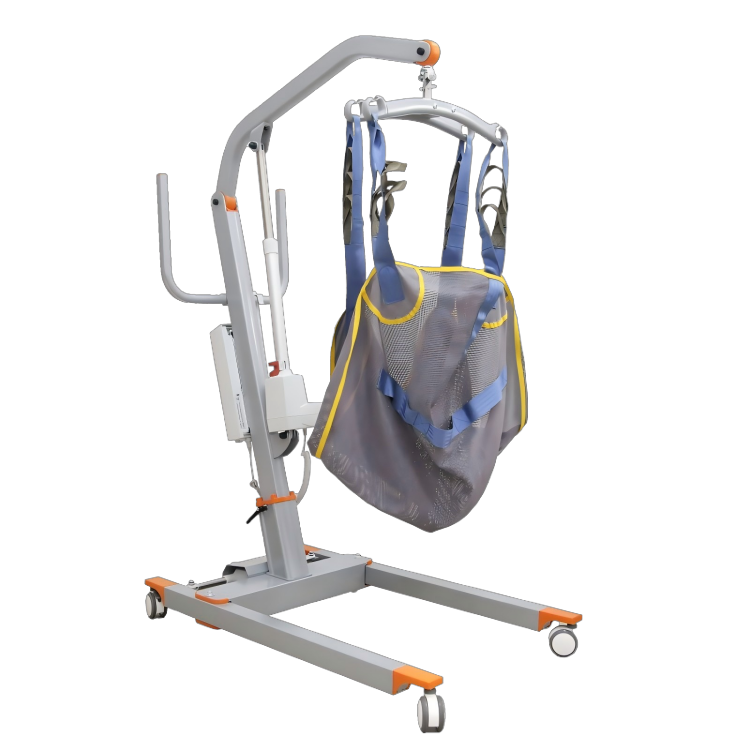

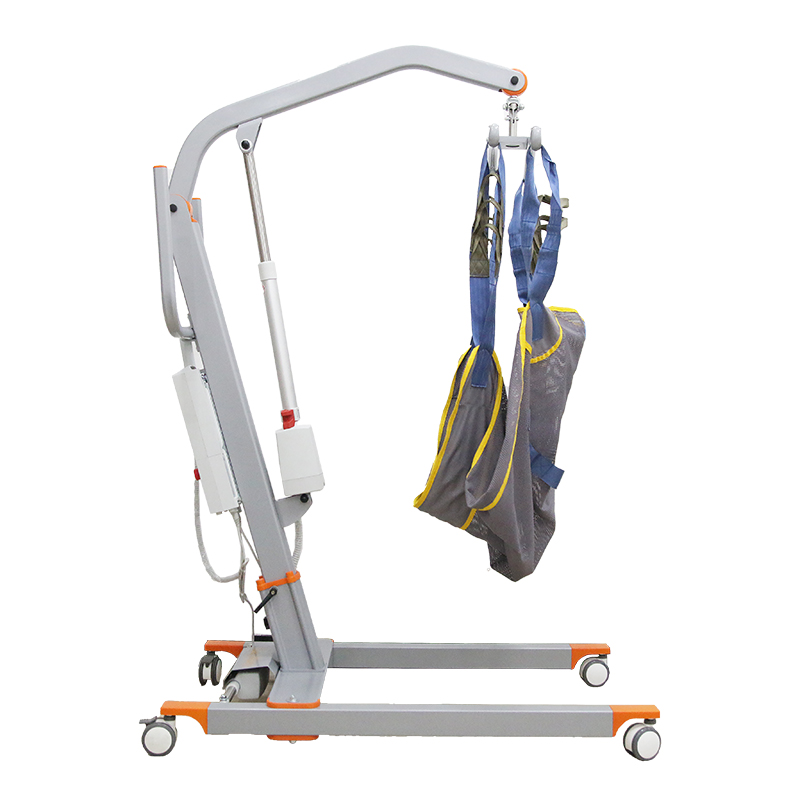

Premium 205kg(452 lbs) Aluminum Electric Patient lifter with LINAK Motor – The Smarter Way to Transfer
• Aircraft-grade alloy provides exceptional strength-to-weight ratio (200kg/441lb capacity) while being 40% lighter than steel hoists for easier maneuverability.
• Industry-leading Danish motor ensures
• Whisper-quiet operation (<40dB) for patient comfort
• 50,000+ lift cycles with zero maintenance
• Precision speed control (3 adjustable settings)
• Real-time overload detection system
• Dual emergency stop controls (remote + base unit)
• Auto-locking mechanism at all height positions
• Rotating boom allows 270° transfer range
• One-touch height memory for repetitive transfers
• Battery backup ensures operation during power outages
• 30% faster transfers than manual lifter
• 2-year motor warranty (industry best)
• Compatible with all standard sling types
• Name: Electric patient lifter
• Model specification: DH079008 Steel material
• Manufacturer:Guangdong Dayang Medical Technology Co., Ltd
• Main technical information:

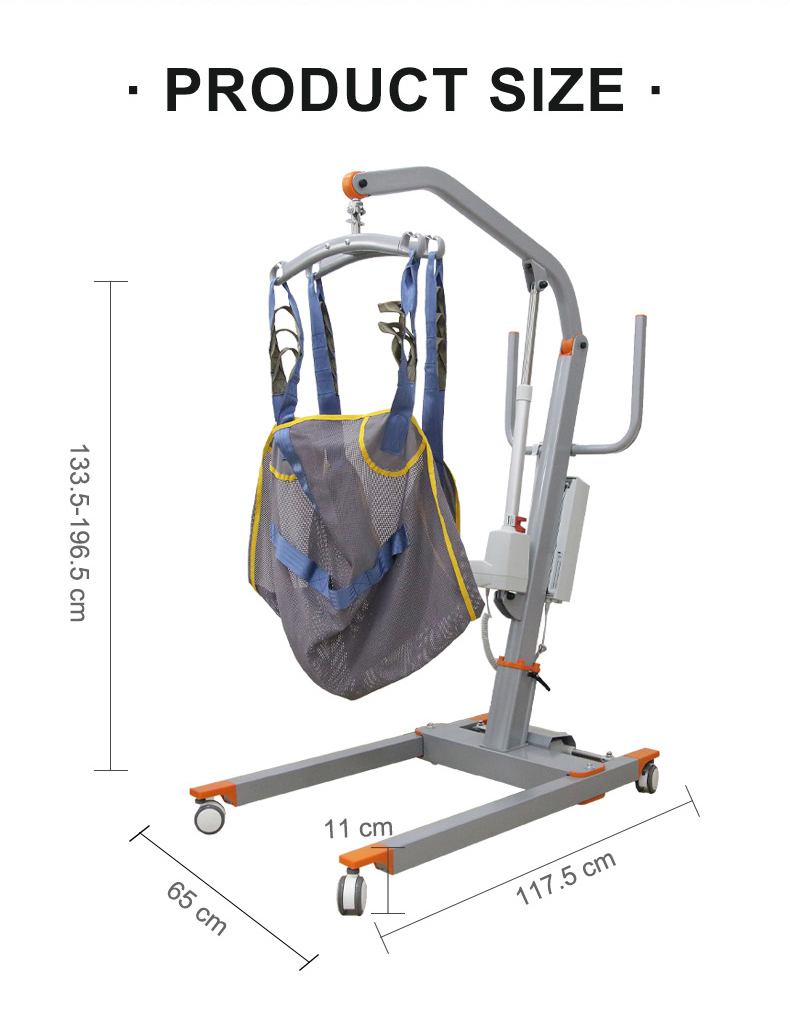

Name | Parameters |  |
Total Length | 117.5cm | |
Total width | 65cm | |
Total height | 133.5~196.5cm | |
Leg width outside | 65~116.5cm | |
Leg width | 55~107cm | |
Leg opening angle | 40° (20° on one side) | |
Leg usage height | 11.3cm | |
Maximum depth of leg use | 76.5cm | |
Adjusttheheight of the suspension rod | Singlependant: 40.5~175cm, Double pendants: 39~172cm | |
Input power | AC100V-240V-50-60HZ | |
Batteries | Leadacid battery DC24V 2.6AH | |
Leg electric push rod | 3000N24V | |
Boom electric push rod | 10000N24V | |
Front wheel diameter | 3-inch nonbrake universal joint | |
Rear wheel diameter | 3-inch brake universal joint | |
Noise | <65dB(A) | |
Packaging size | 126*71*41.5cm | |
Weight | Single boom: Net weight - 37.5kg, Gross weight：44.5k g Double boom: Net weigh t- 38.5kg, Gross weight 45.5kg; Separate electric contr ol system: 10kg. | |
Load capacity | 205kg |

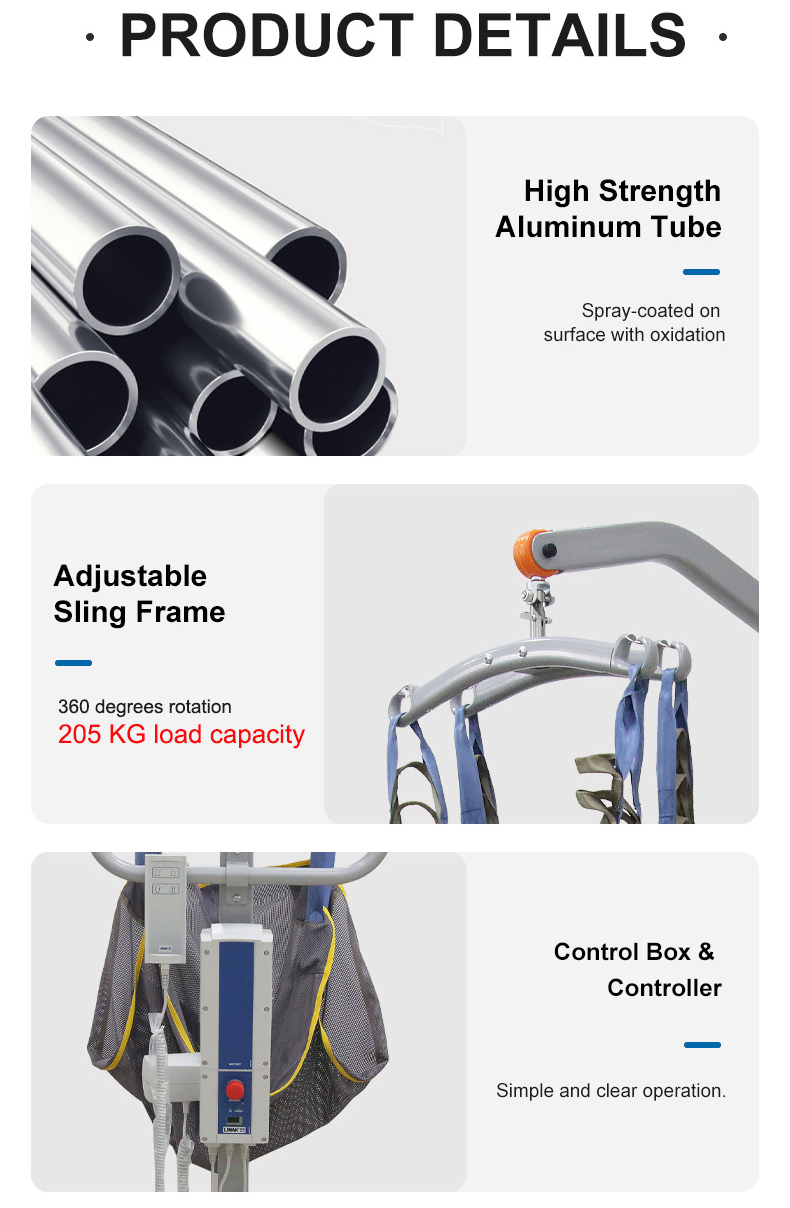

1. High-strength aluminum alloy body: The main body of the vehicle is constructed from high-strength aluminum alloy tubing, featuring a sleek and professional aesthetic while boasting exceptional strength and stability. Its surface undergoes spray coating treatment, equipped with anti-aging and oxidation-resistant properties for enhanced durability.

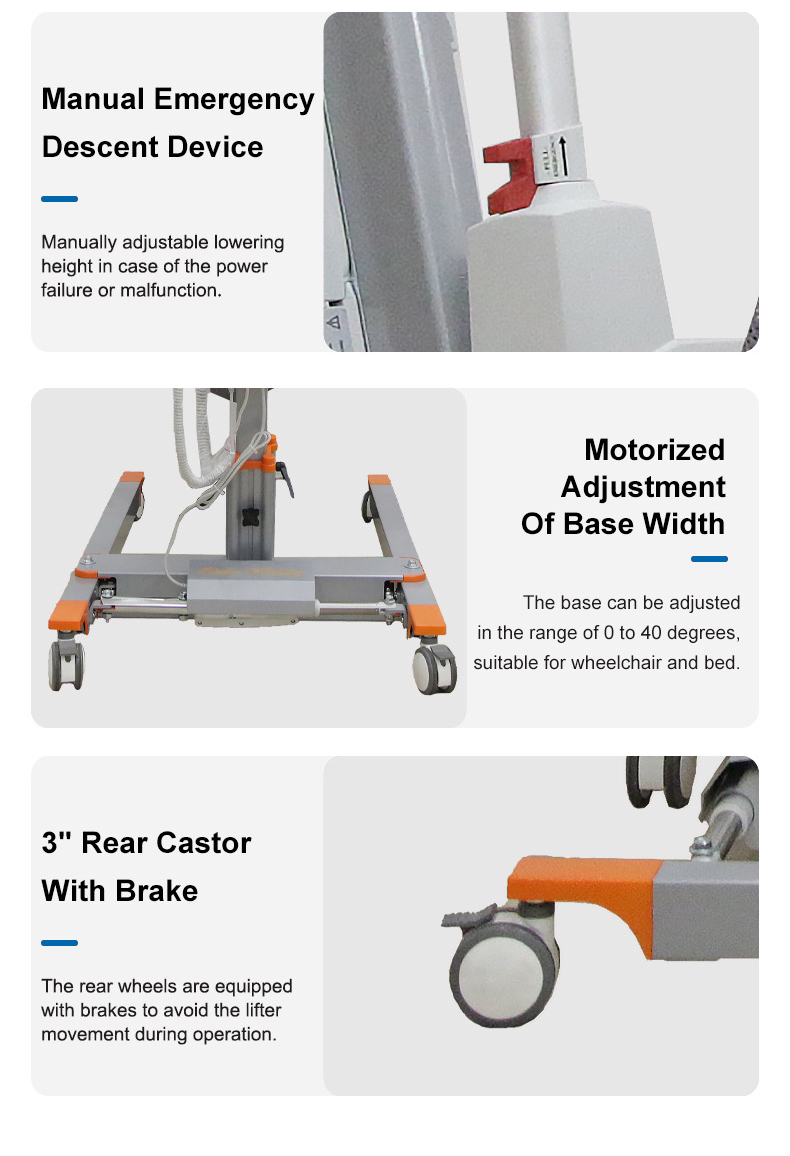

2. Eight-shaped electric retractable support legs: Equipped with eight-shaped retractable support legs, the base width is electrically adjustable to accommodate most application scenarios, ensuring stable operation across diverse environments.
3. High-strength seated transfer sling: A high-strength seated transfer sling is integrated to assist in patient repositioning, effectively reducing physical strain on caregivers during transfers.
4. Sling Specifications: Designed with high load-bearing capacity, the sling is crafted from soft, supple fabric with excellent breathability. It offers 4-position adjustability for front-rear height, adapting to various patient body types and needs.
5. Rotary Suspension Hook: This component provides versatile adaptability, enabling easy adjustment of lowering positions to suit different operational requirements.
6. Mobility Features: The rear is fitted with 3-inch swivel braked wheels for effortless braking by operators, while the front 3-inch swivel wheels ensure agile and responsive steering—combining stability with maneuverability.
7. Electric Lifting System: Powered by an electric lifting mechanism, the vehicle supports free height adjustment within its stroke range, allowing precise control over lift elevation.

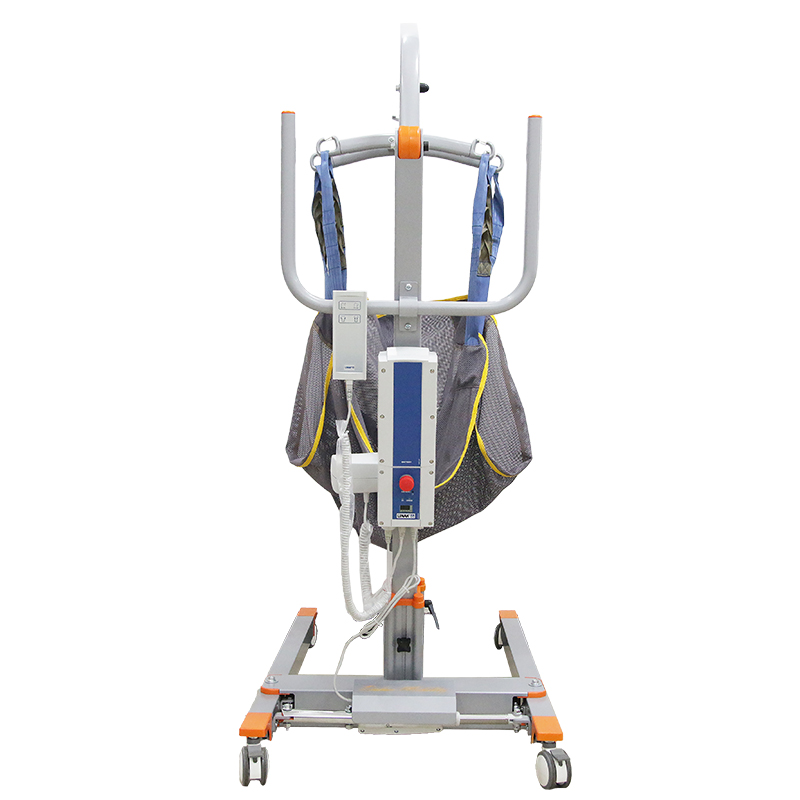

8. Electrical Control System: Integrated with an emergency stop switch and a battery level indicator, the control system ensures safe and intuitive operation with real-time power monitoring.
9. Control Interfaces: A dedicated wired hand controller is included for direct operation. Additionally, the boom’s electric push rod is equipped with an emergency manual lowering mechanism, providing dual safety redundancy in abnormal scenarios.
