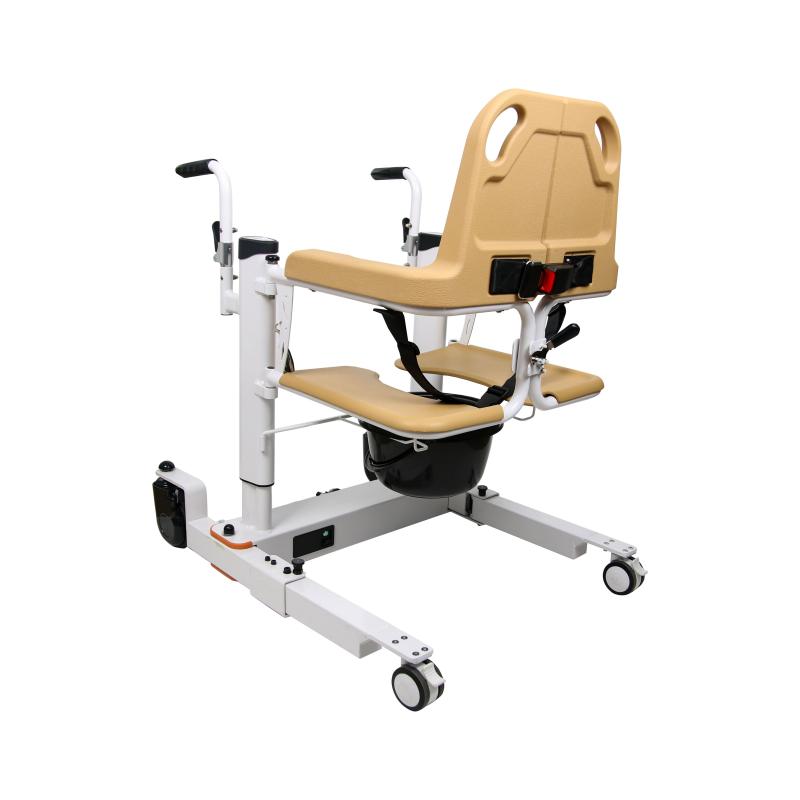

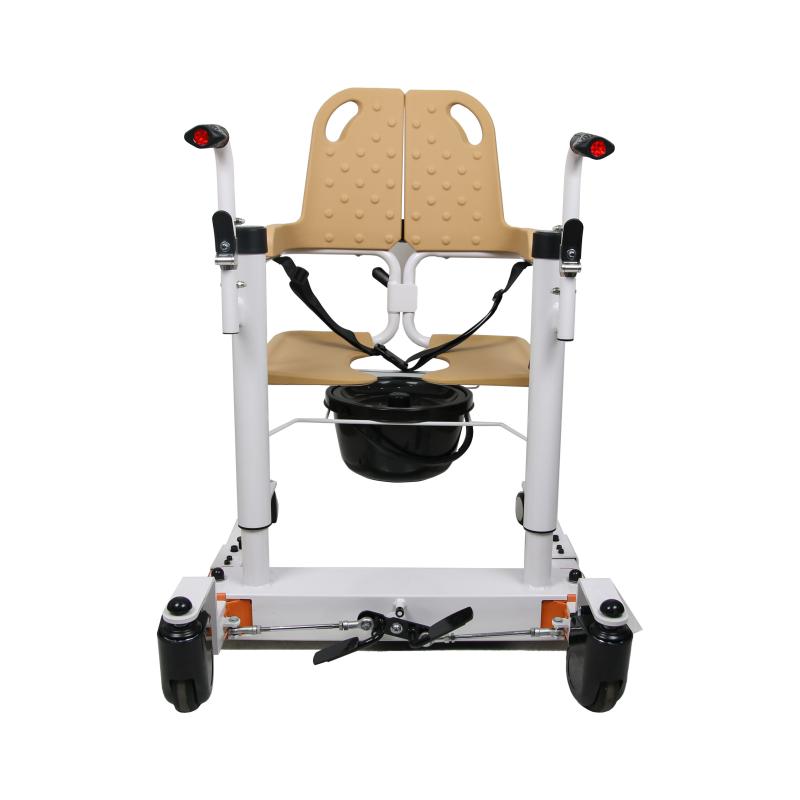

This electric transfer chair uses high-strength aluminum alloy tubing, combining a robust structure with a minimalist aesthetic. It integrates the functions of a shower chair and a commode toilet chair, and features a non-slip, waterproof seat and electric height adjustment function, providing users with a safe, convenient, and efficient service.

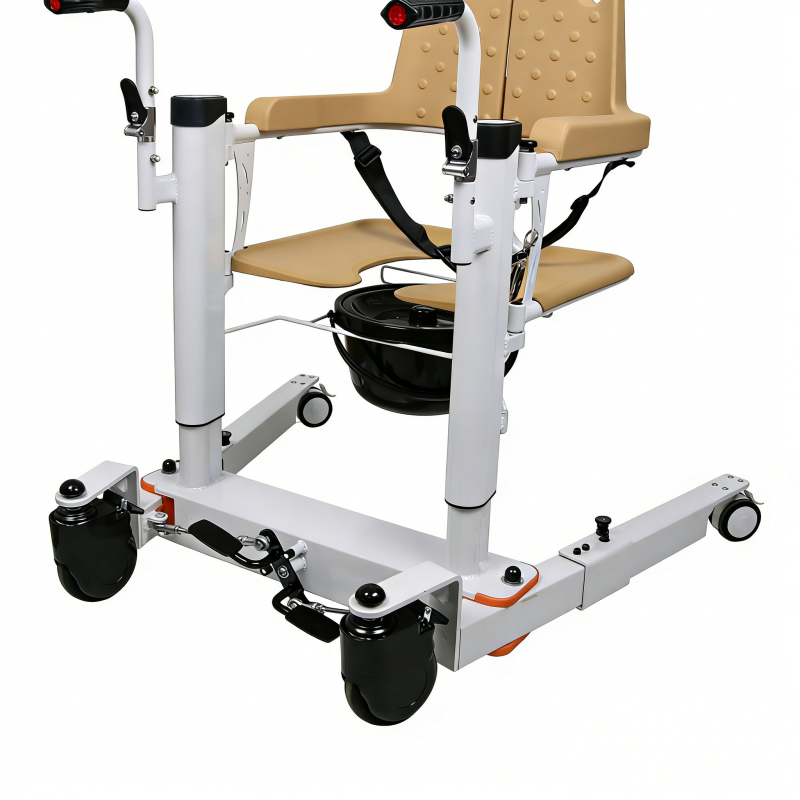

The main body of the electric transfer chair is made of high-strength aluminum alloy tubing, ensuring a robust and stable structure with a simple yet elegant design. The surface is treated with white paint, providing excellent anti-aging and anti-oxidation properties. This lift transfer chair integrates a mobile shower chair and a built-in toilet, simultaneously meeting the needs of showering and toileting, effectively reducing inconvenience for users during transfers.
The commode toilet chair features a quick-release, large-opening seat frame for easy daily access and storage. Suitable for regular shower environments, the seat and backrest are made of non-slip, waterproof PVC material, and employ a user-friendly design with thicker edges and a thinner center to prevent water accumulation after showering, enhancing user comfort and safety while reducing the workload of caregivers.

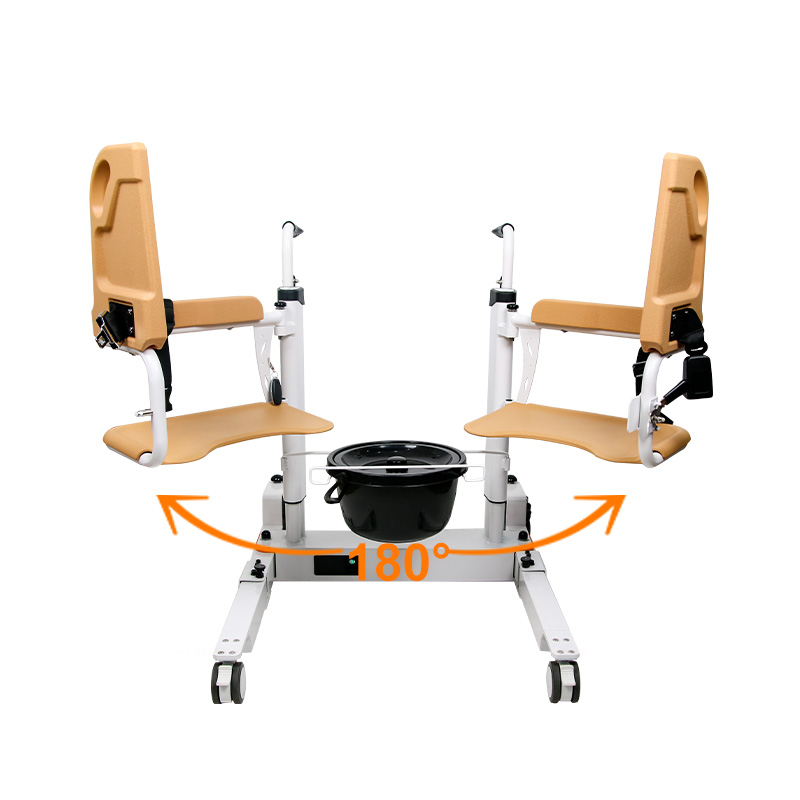

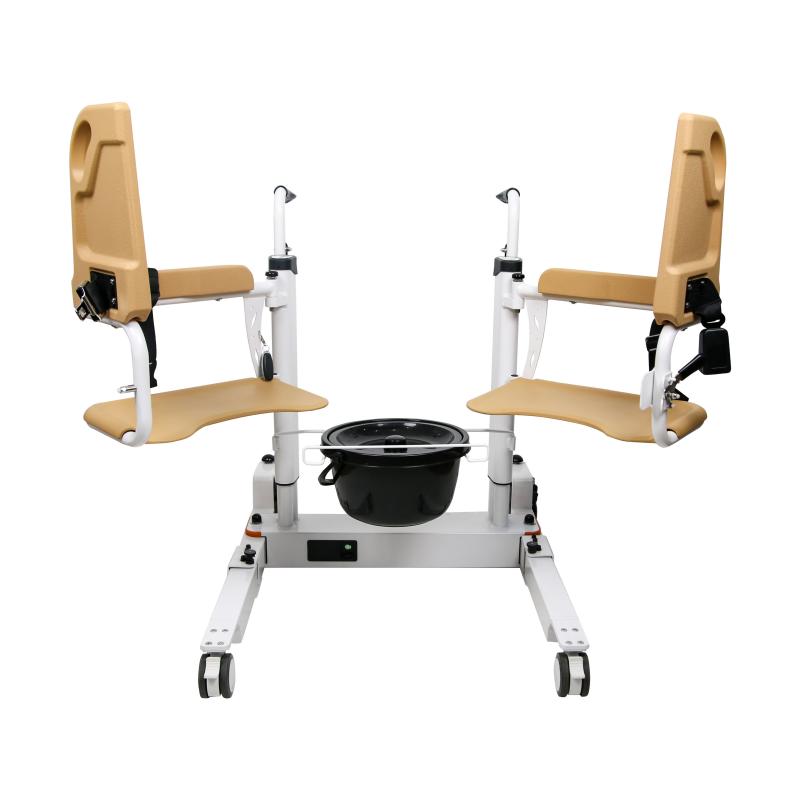

0-180°openable seat

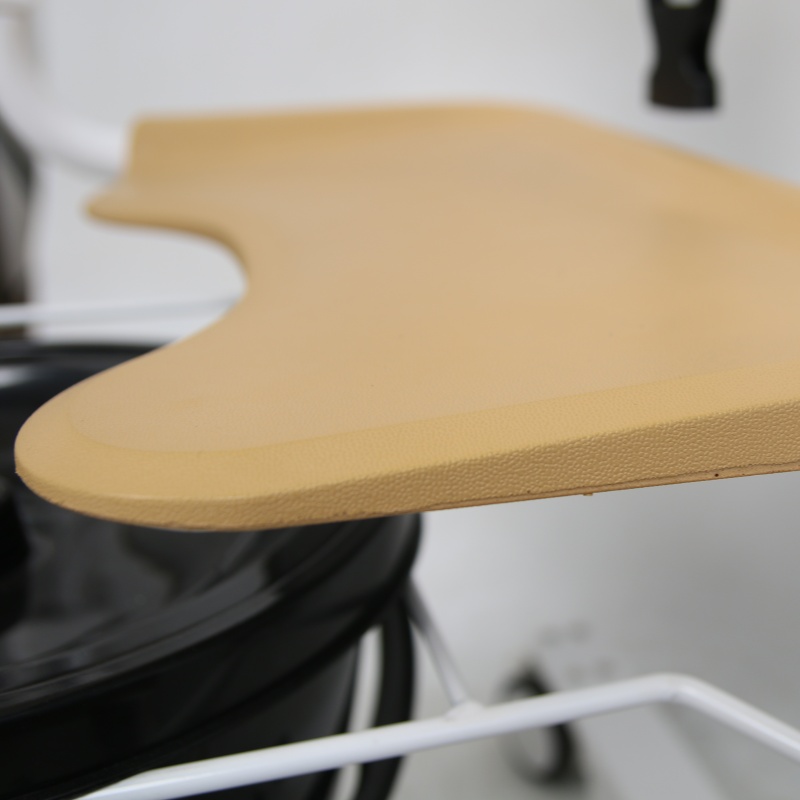

Waterproof and non-slip seat made of PVC material
The armrests of this transfer chair can be folded down, allowing users to dine in place without having to change positions. The foldable auxiliary casters offer flexibility, making it easy to store and adjust.
Foldable handles make dining easier for users

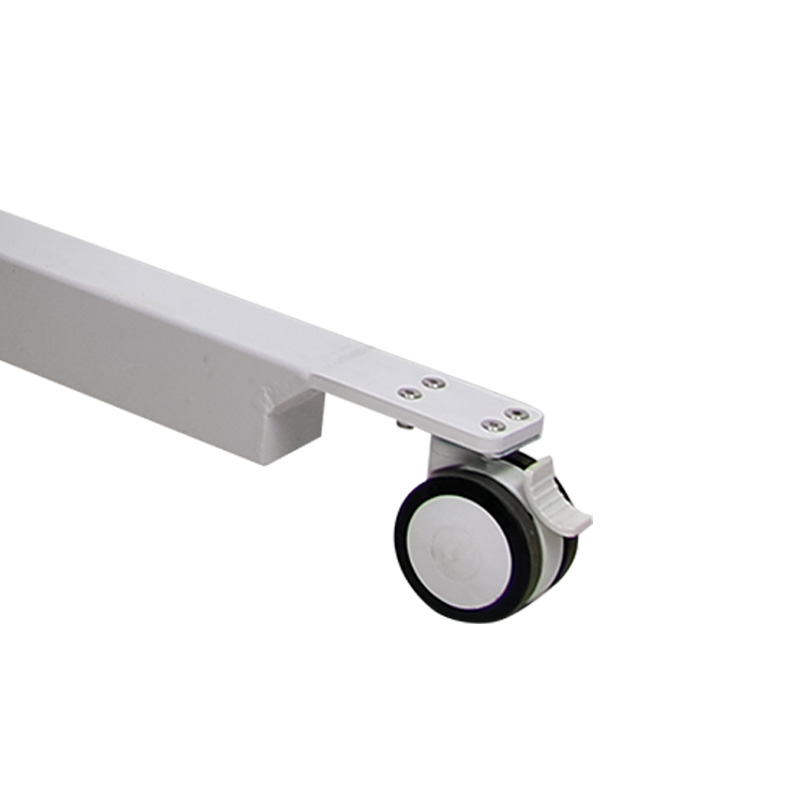

Foldable small wheel leg
This mobile shower chair is equipped with footrests to comfortably support the feet; in front of the footrests is a small wheel frame width adjustment switch, which can easily control the unfolding width of the auxiliary wheel frame, so that the transfer cart can smoothly and safely move the user to the target position such as a wheelchair.
Switch to adjust the width of the small caster legs

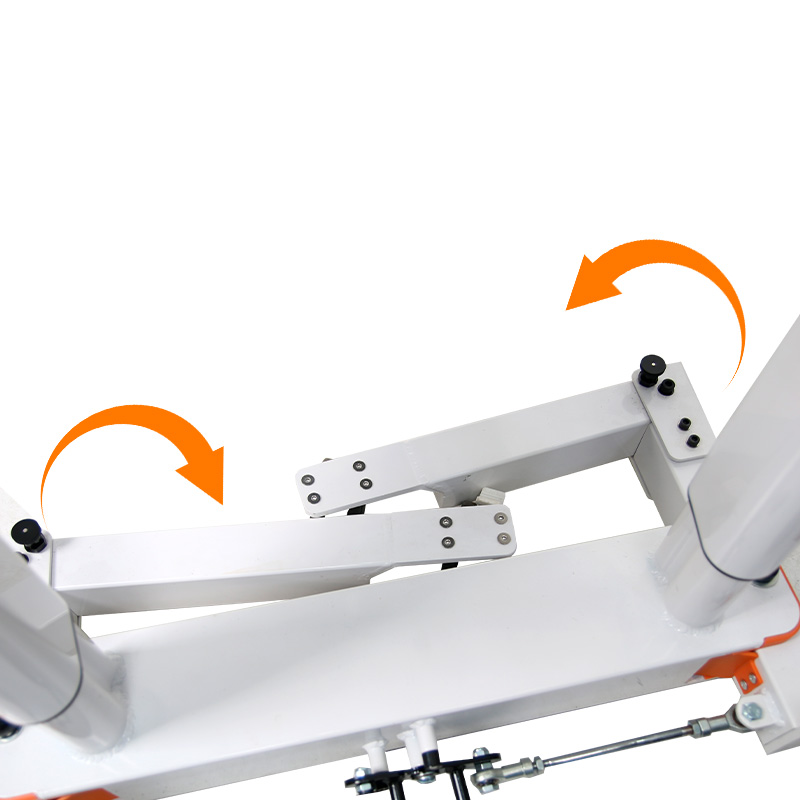

The small wheel frame can be widened to suit various scenarios

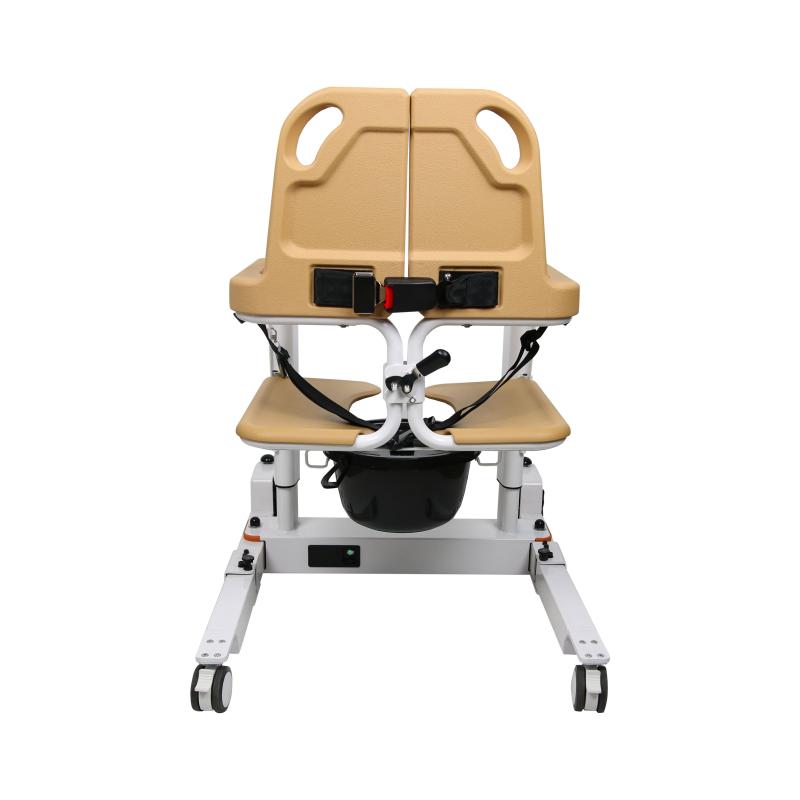

The transfer chair features 5-inch front and 3-inch rear swivel casters with brakes, allowing the operator to easily apply the brakes. The lift transfer chair also comes equipped with an adjustable seat belt to effectively prevent the user from slipping forward. The electric remote control allows for free adjustment of the seat height, making operation convenient, effortless, and efficient.
Safety foot brake

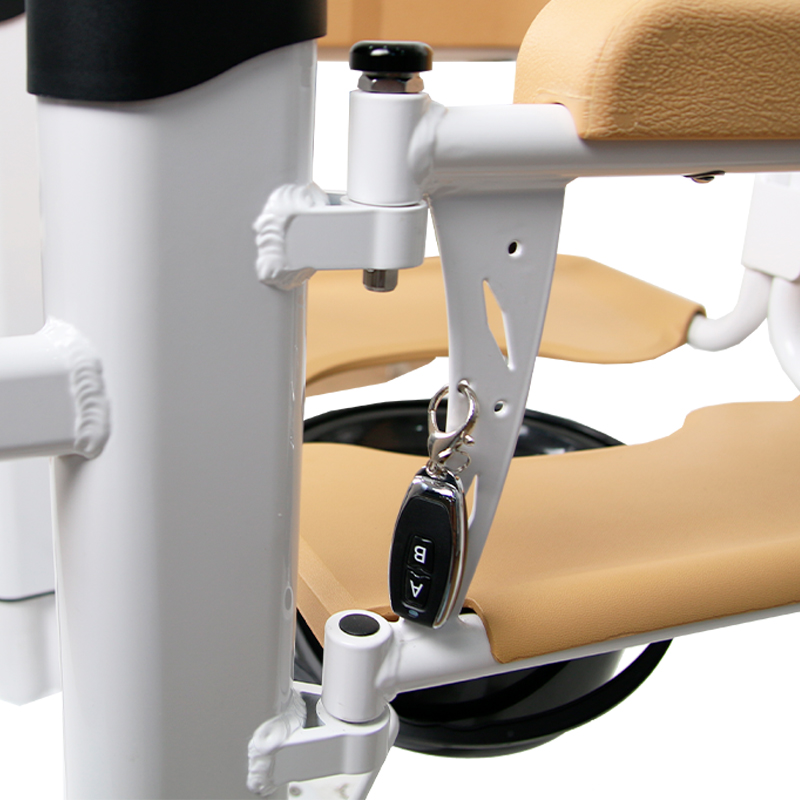

Electronic remote control for lift up and down

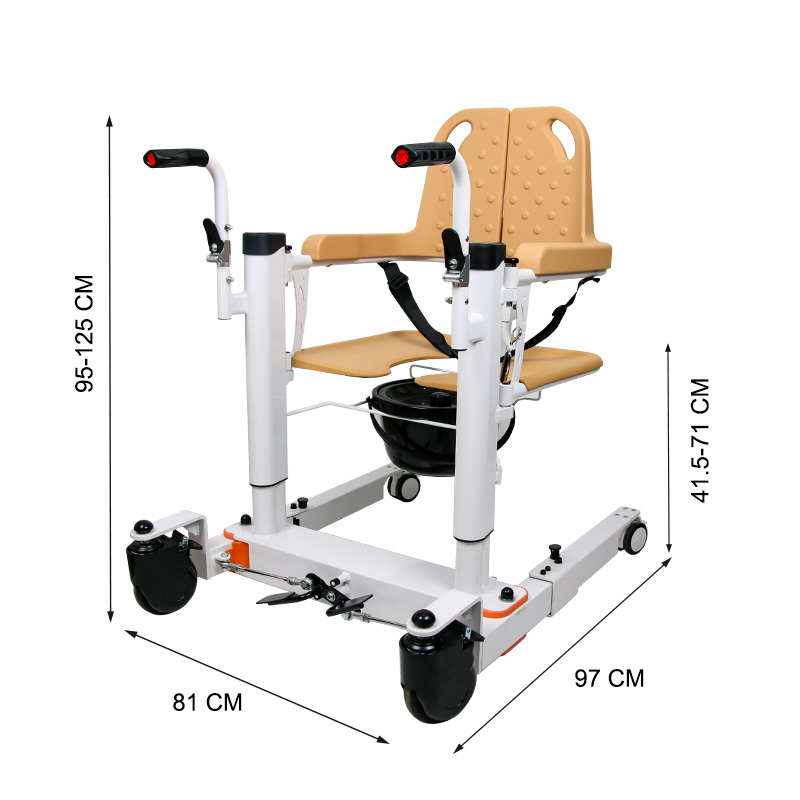

| Name | Parameters |
| Total length | 970±10 mm |
| Overall width | 810±10 mm |
| Total height | 950-1250±10 mm |
| Seat width | 460±10 mm |
| Seat depth | 400±10 mm |
| Seat height from the ground | 415-710±10 mm |
| Backrest height | 530±10 mm |
| Front wheel | 5” |
| Back wheel | 3” |
| Use height (small wheel frame height) | Small wheel frame position：95±10 mm Folding switch position：120±10 mm |
| Inner width of leg spread | 580-850±10 mm |
| Battery capacity | 24 V/4 AH |
| Carton size | 620*470*770 mm |
| Net weight | 32 kg |
| Loading capacity | 100 kg |
